System Specifications

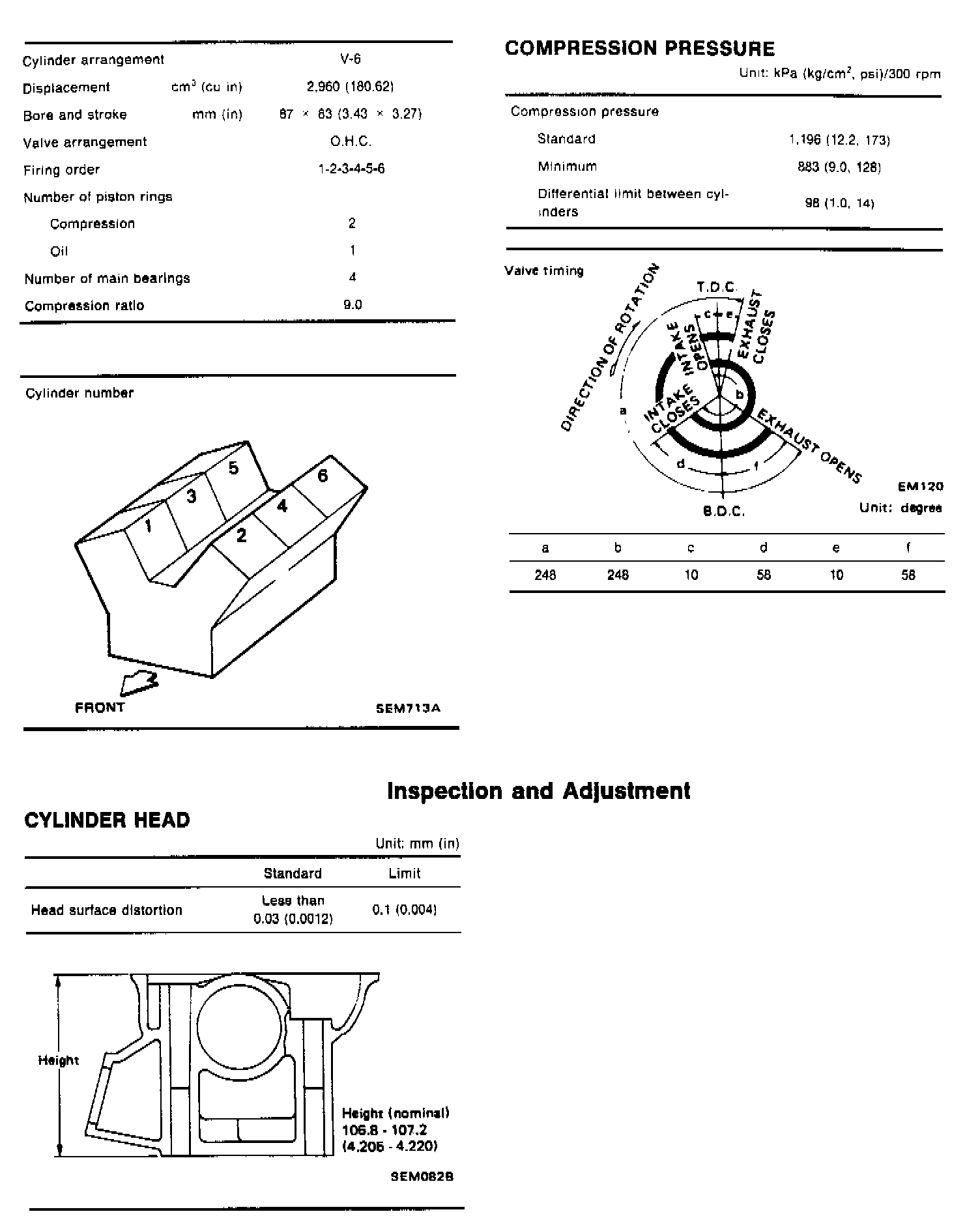

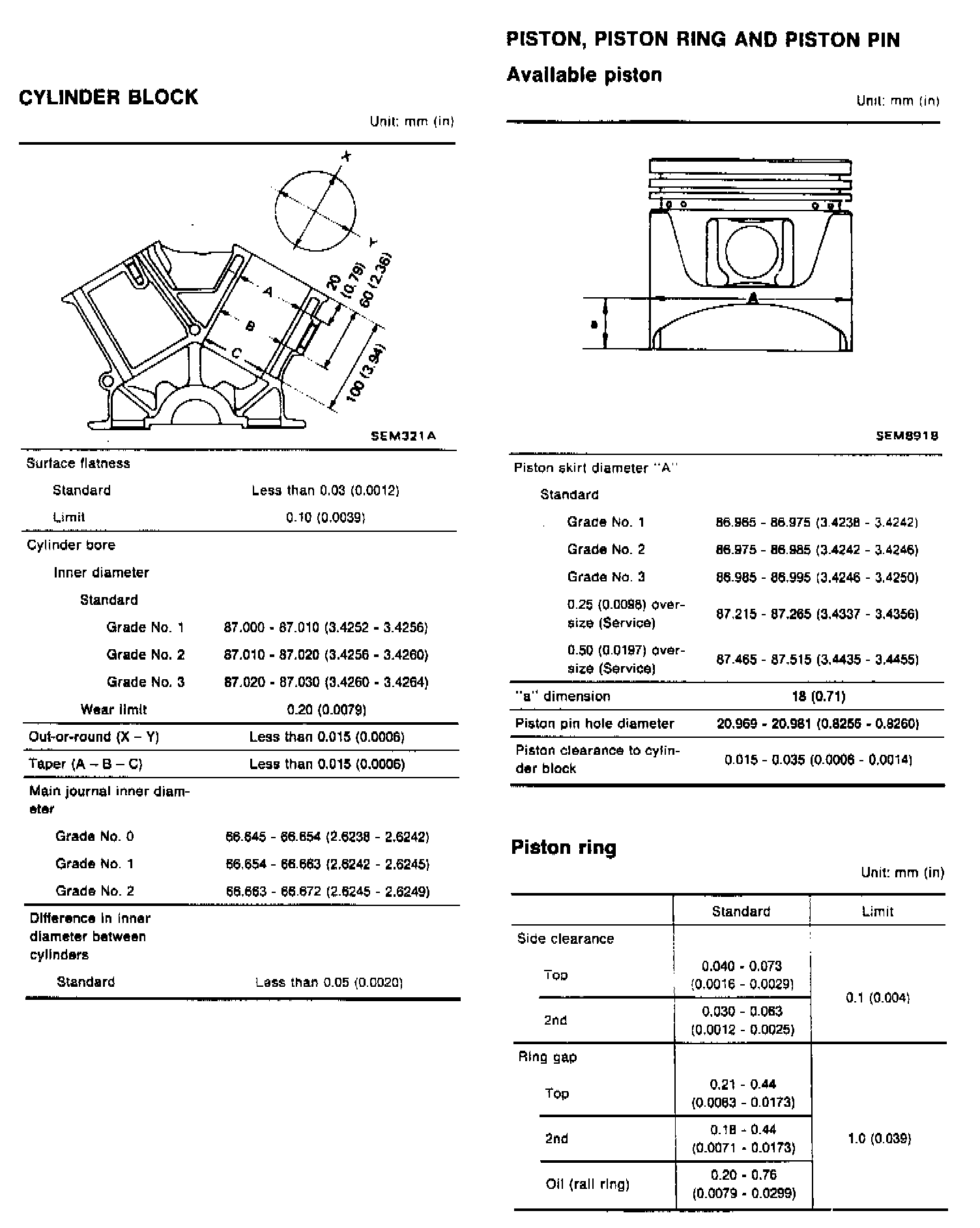

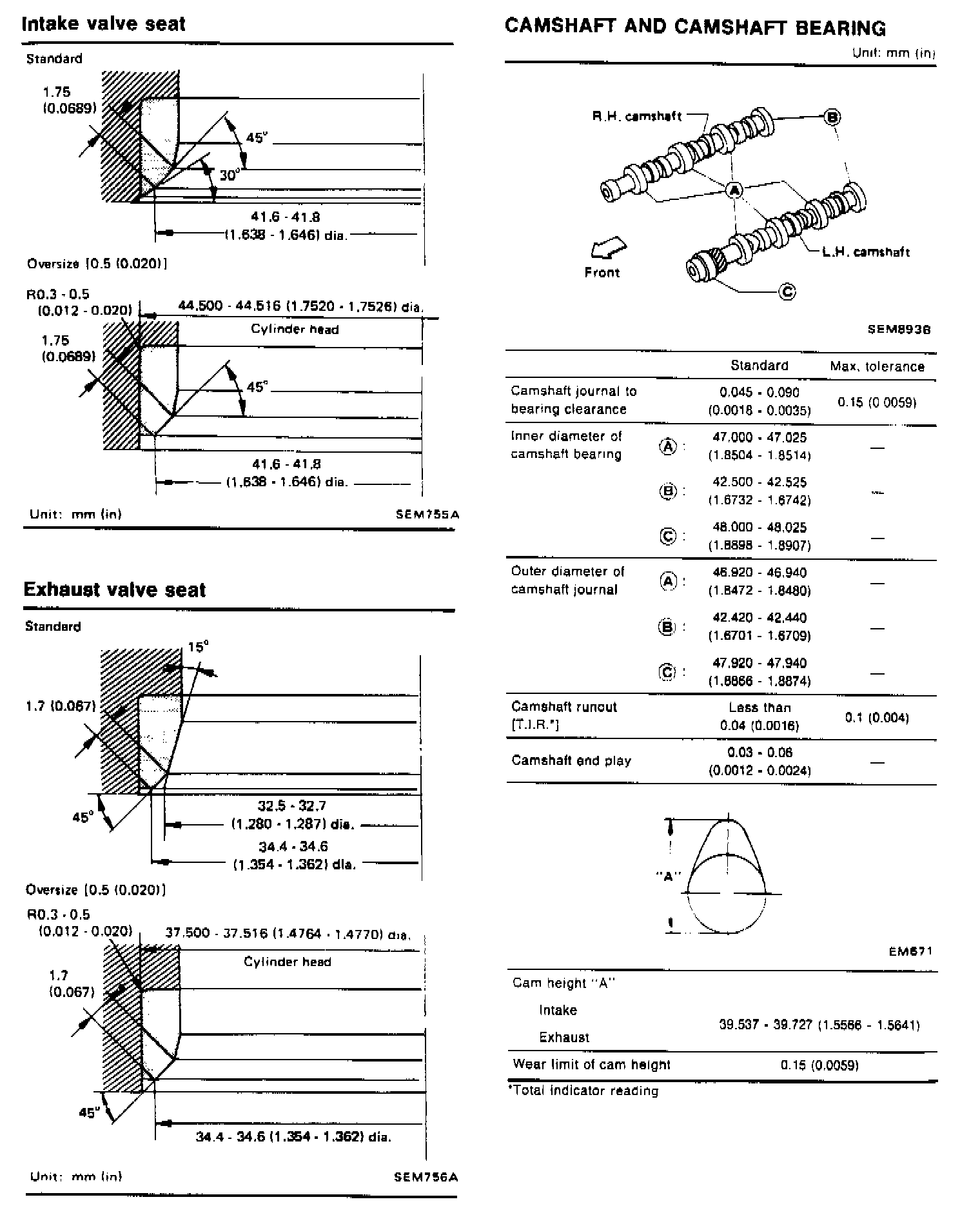

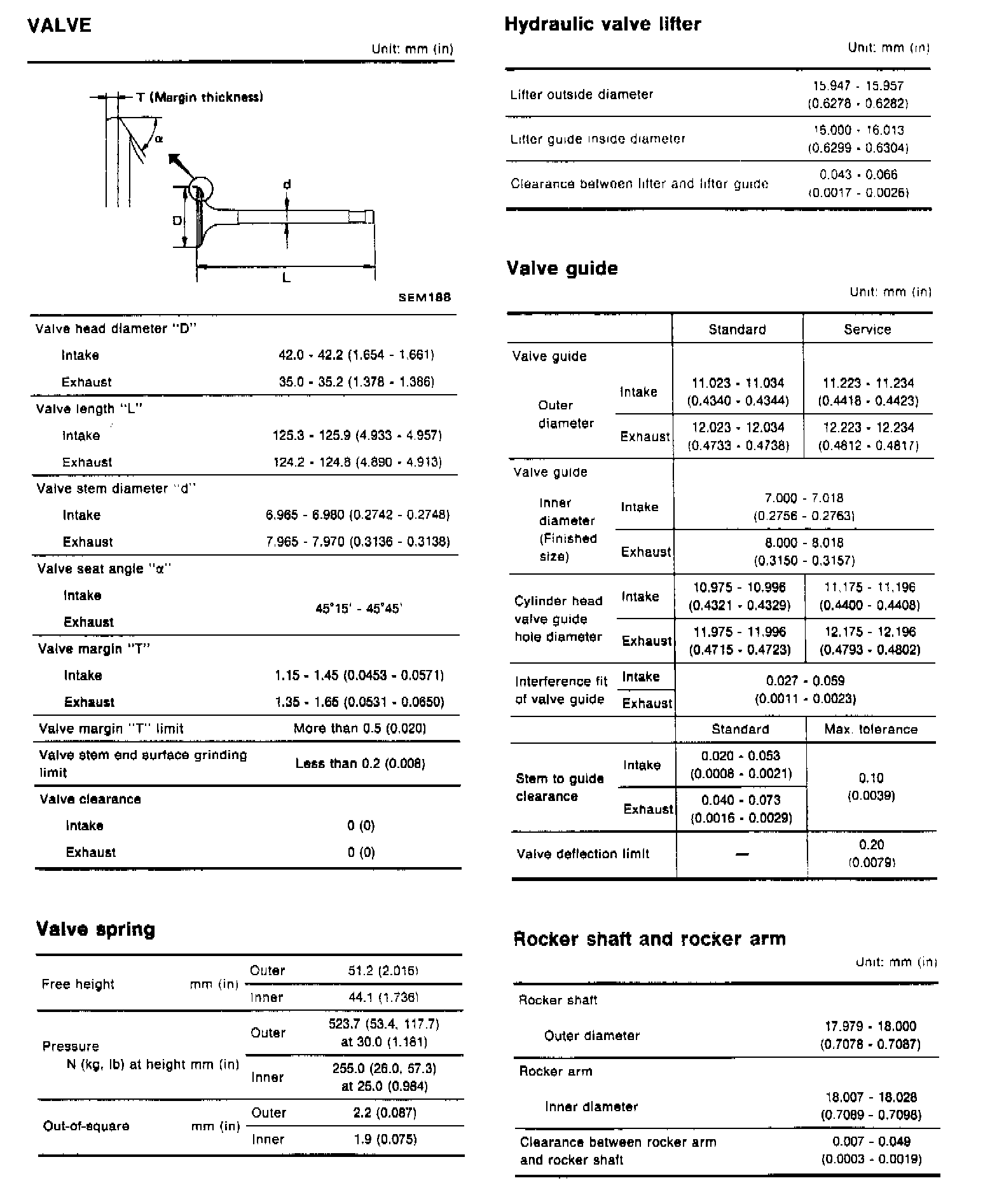

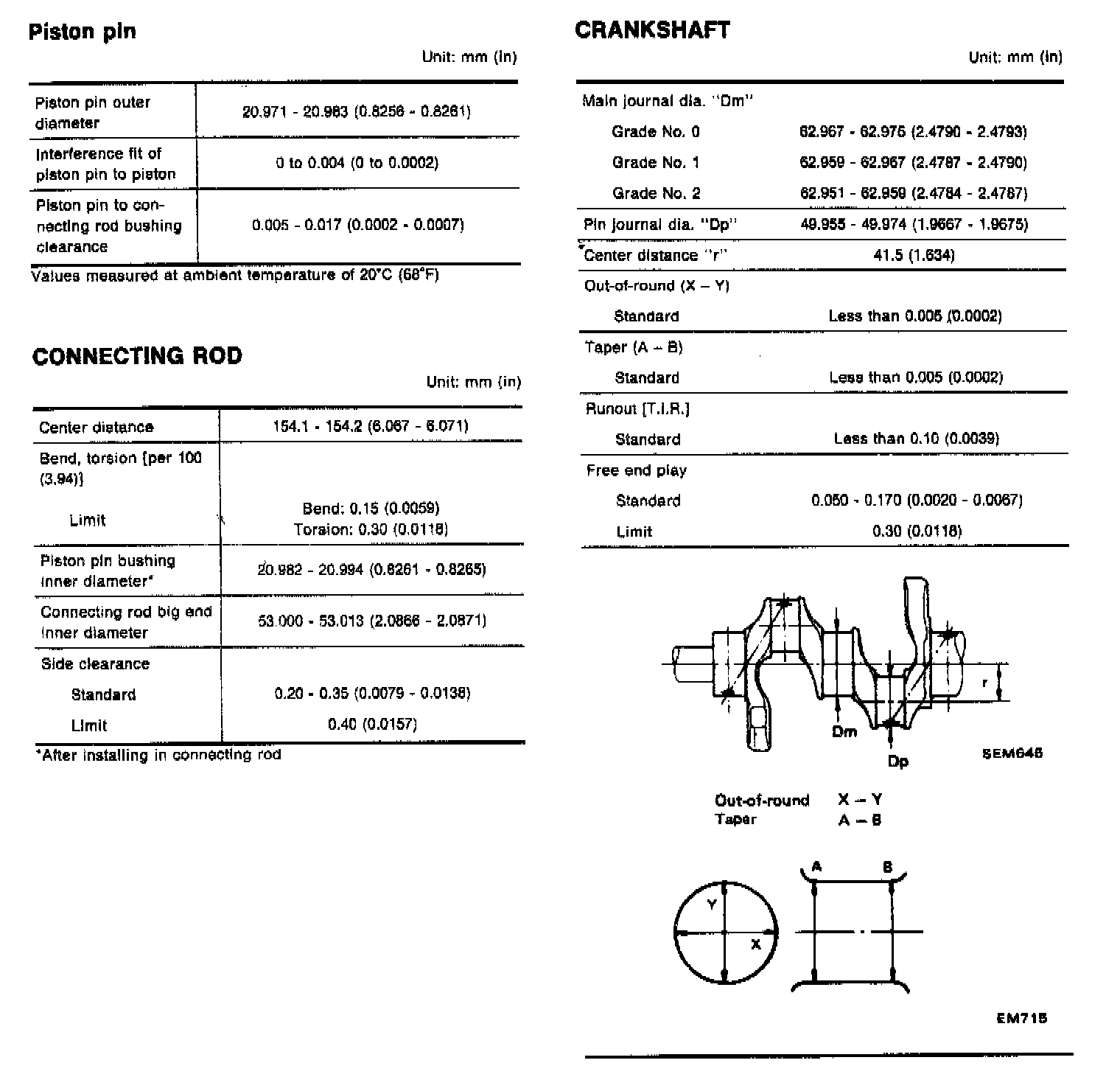

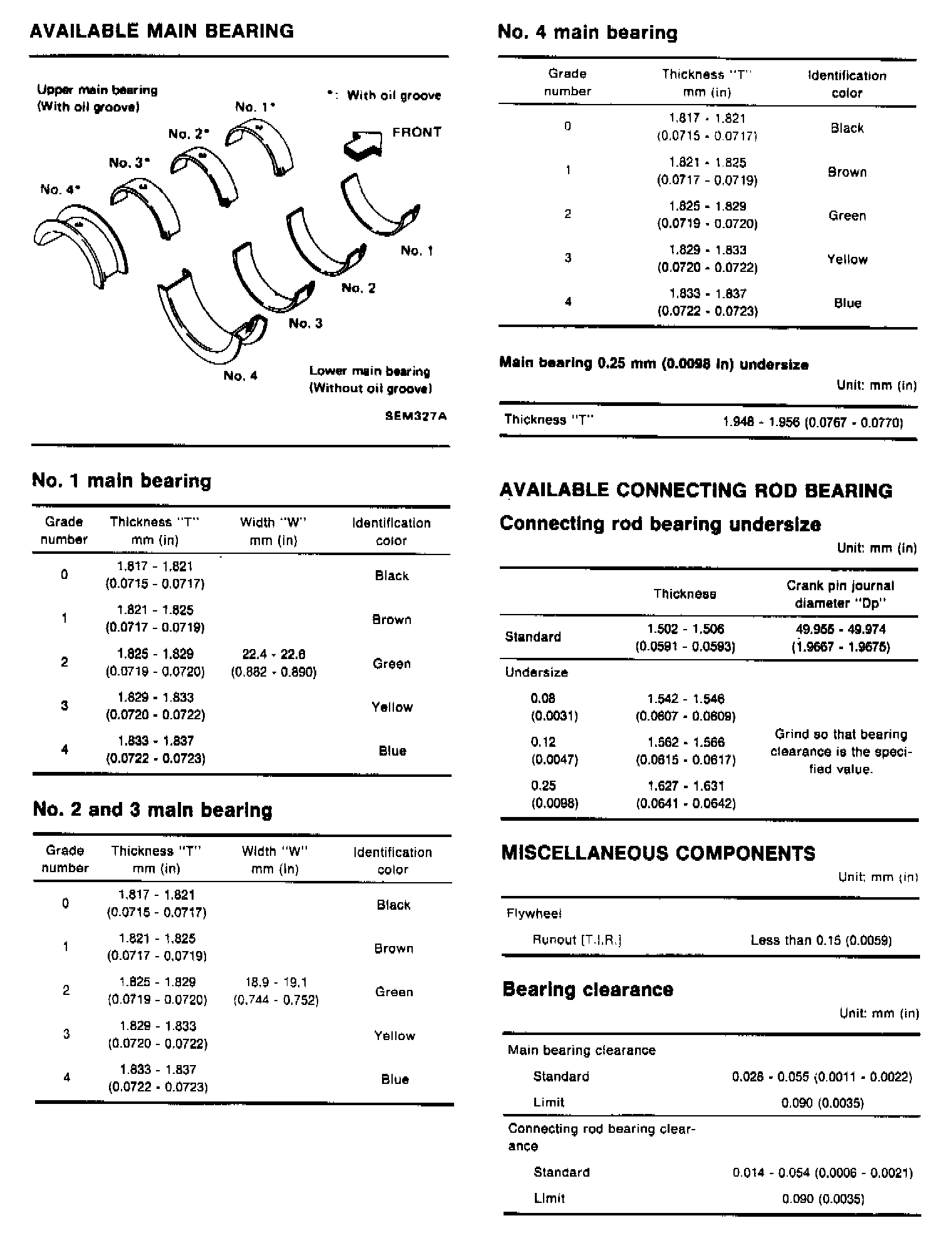

ENGINE SPECIFICATIONS

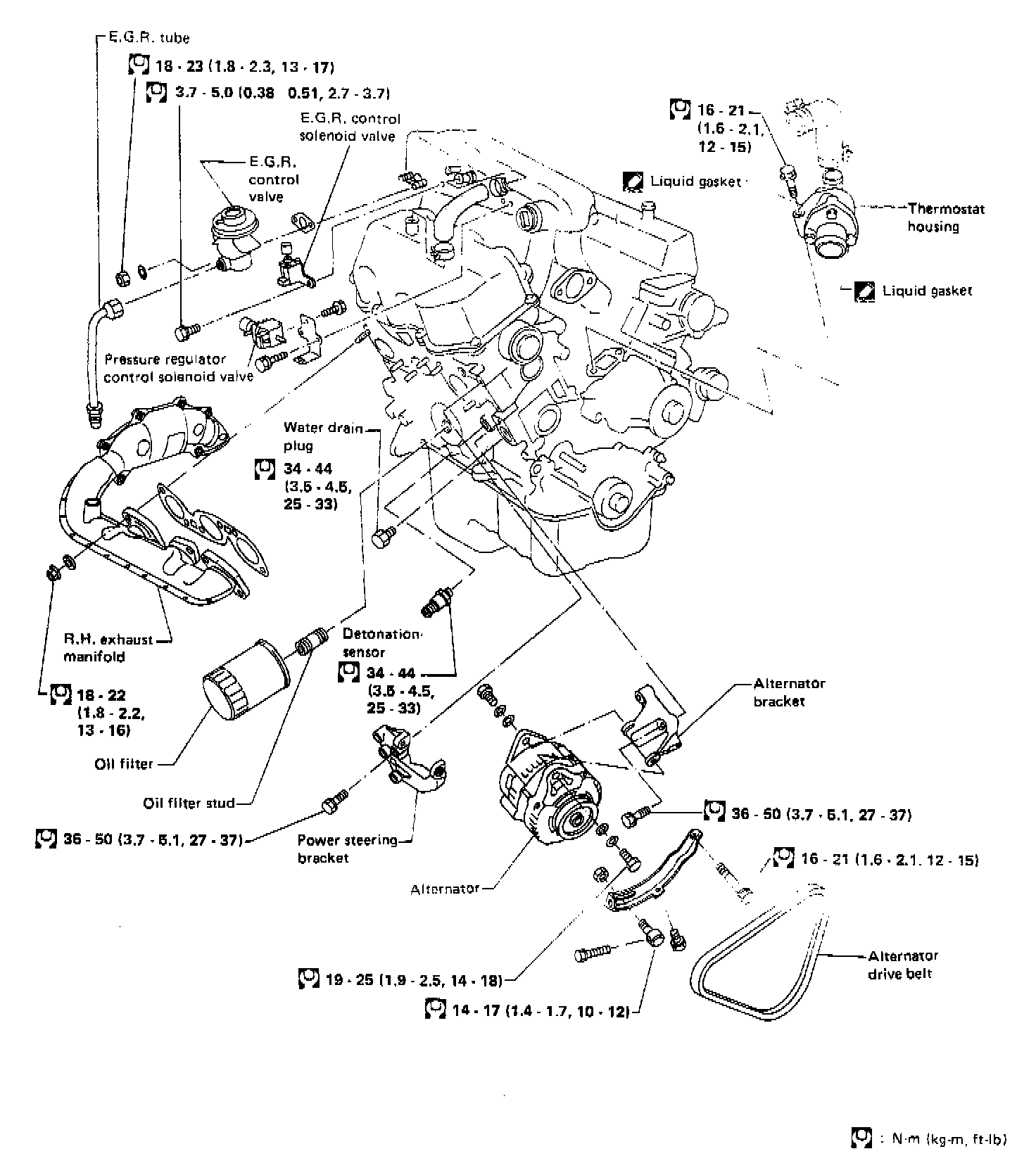

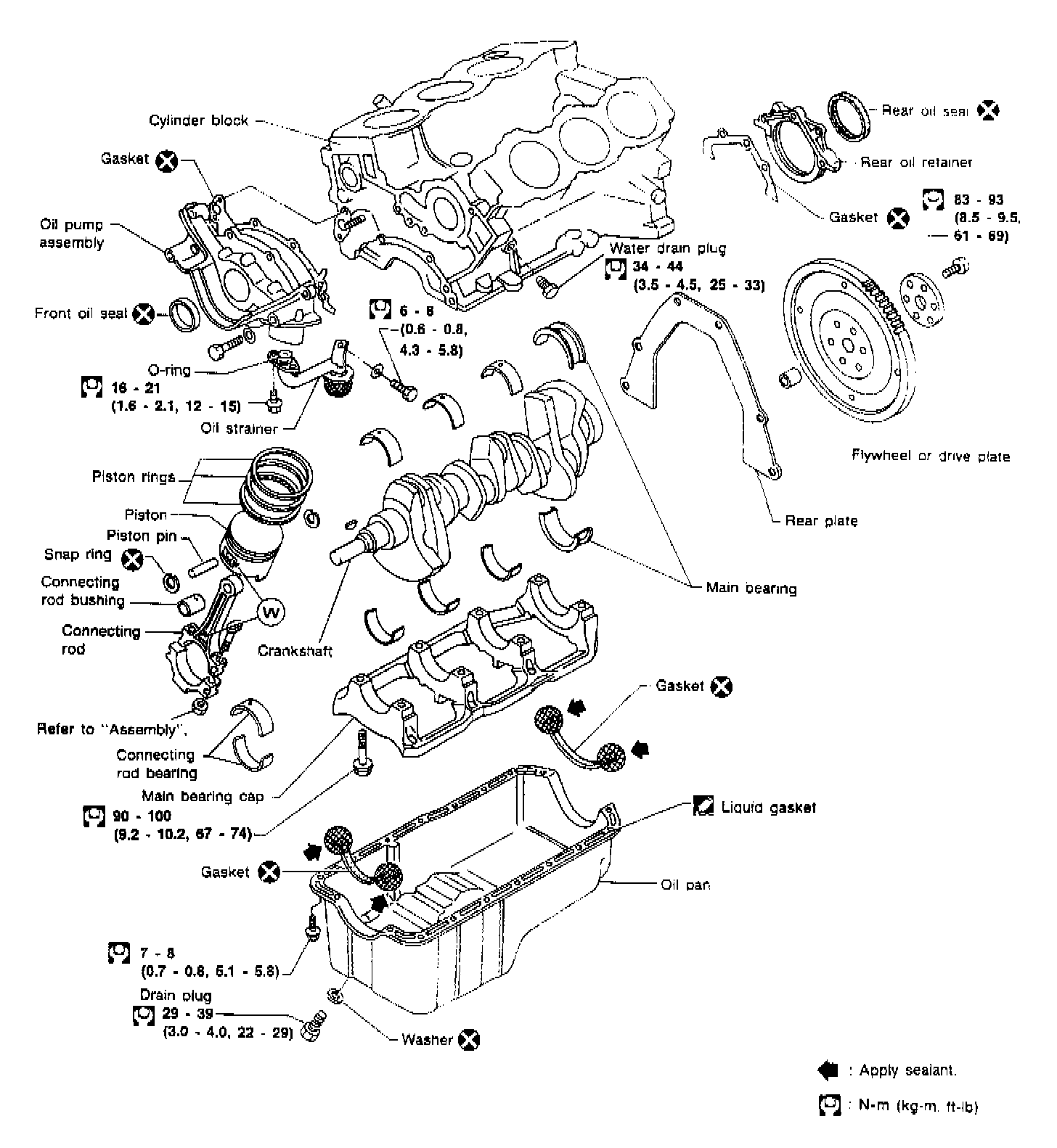

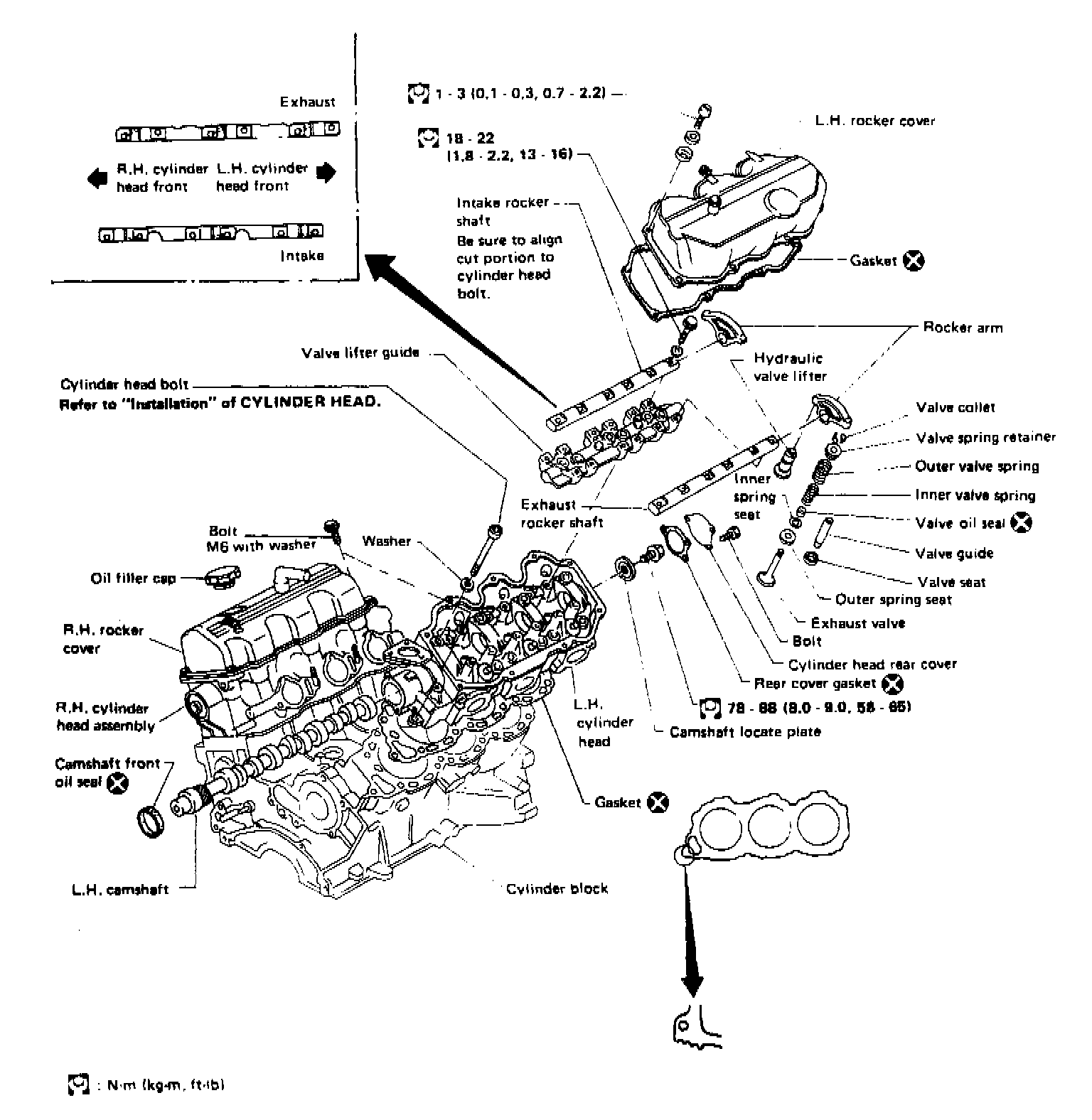

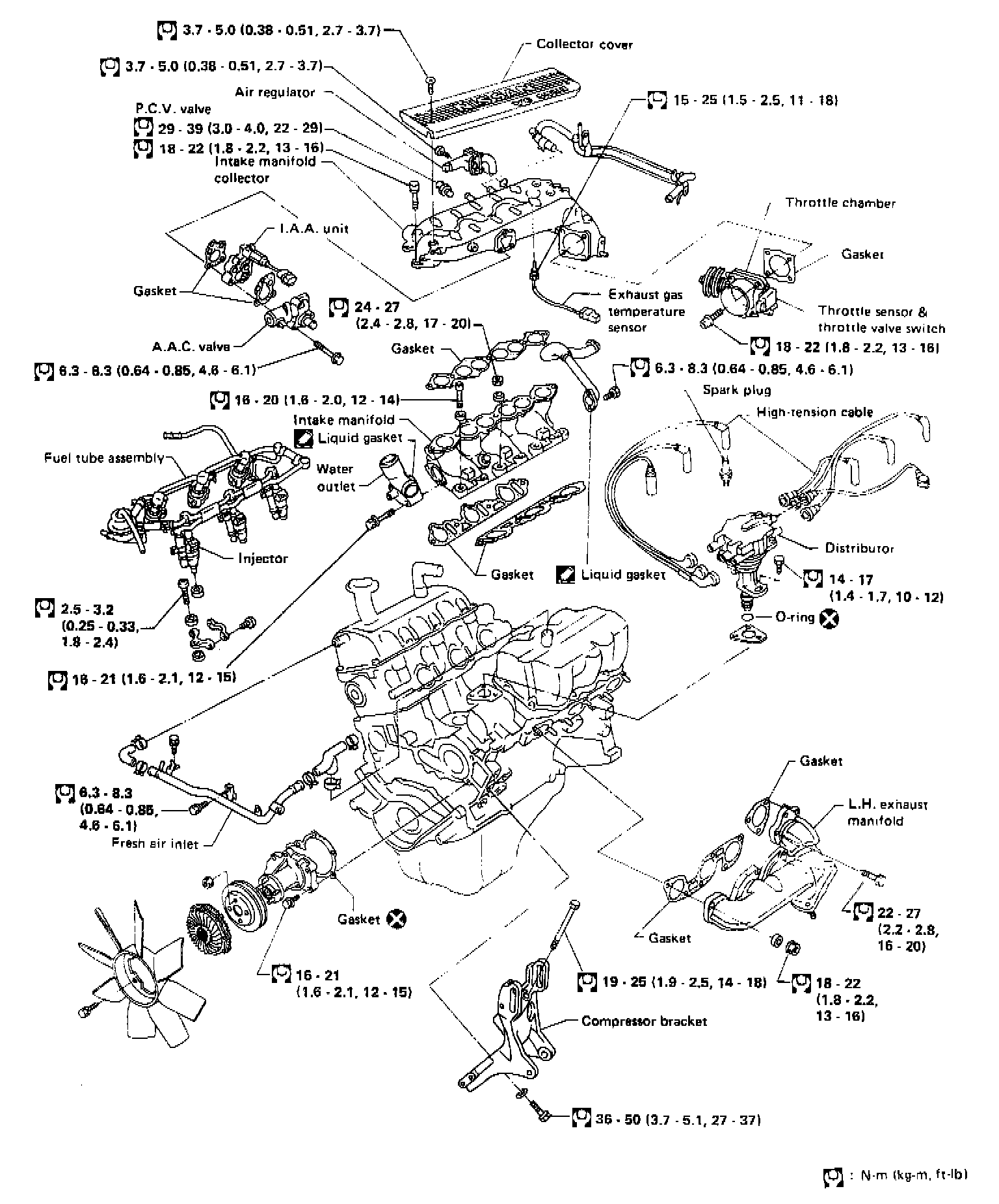

TIGHTENING SPECIFICATIONS





















CYLINDER HEAD TIGHTENING SEQUENCE





INTAKE TIGHTENING SEQUENCE









MAIN BEARING TIGHTENING SEQUENCE
