Control Module HVAC: Locations

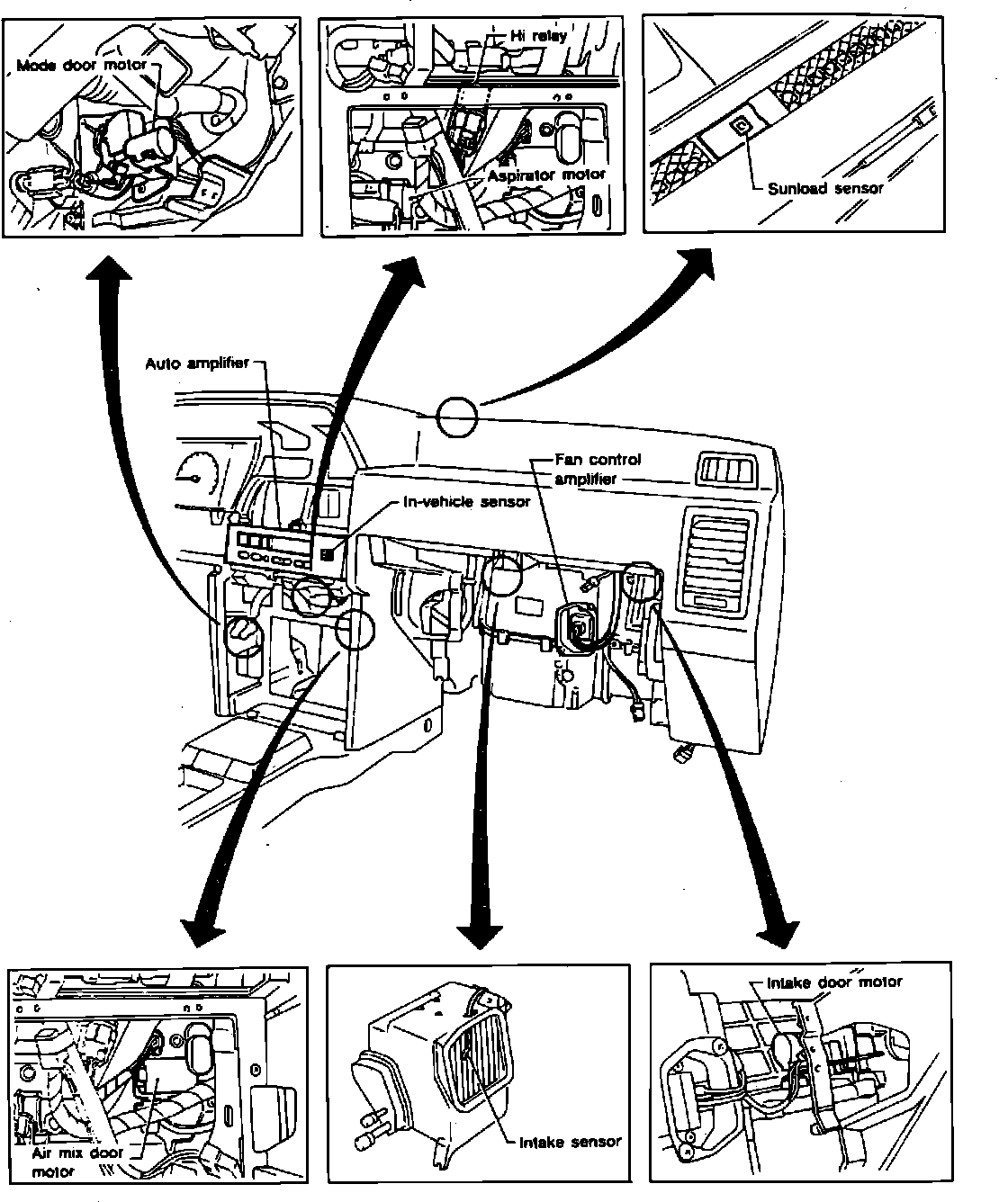

A/C Component Locations (Part 1 Of 2).:




A/C Component Locations (Part 1 Of 2).:




Behind RH Side Of I/P

Applicable to: Automatic A/C
