ECTS #1

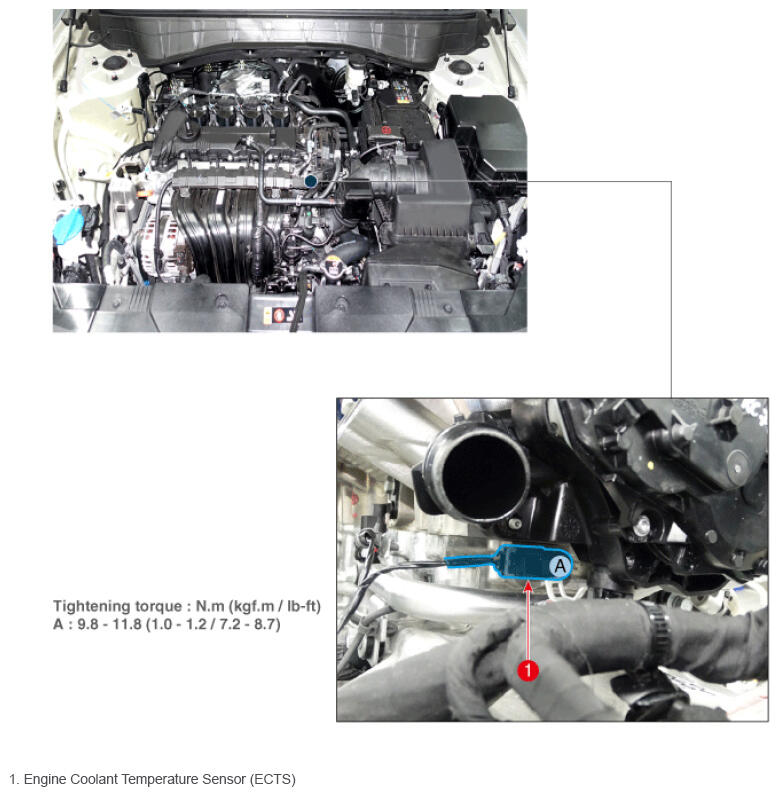

Fig 1: Engine Coolant Temperature Sensor Components Location With Torque Specification (ECTS #1)
G16544751Courtesy of HYUNDAI MOTOR AMERICA
