Power-Net Domain Controller (PDC)

WARNING: This page is about a different car, the 2024 Hyundai Kona. However, it is still accessible from the selected car via links, so may be relevant.

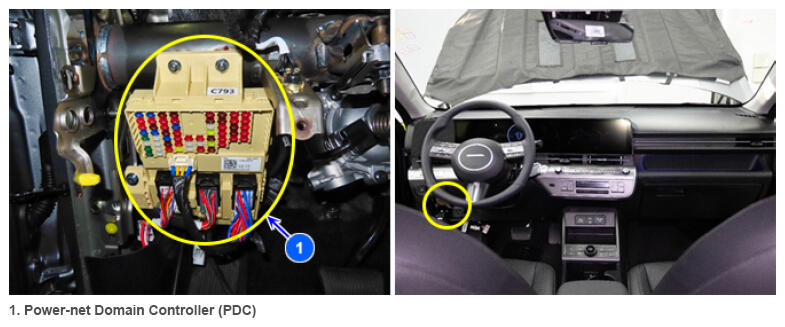

G16624850Courtesy of HYUNDAI MOTOR AMERICA

The ISP control of the power controller (PDC: Power-net Domain Controller) controls the system of power distribution and various lighting devices by mounting fuses and connecting various fuses or relays with electronic circuits. In addition, it is responsible for fault diagnosis signal processing, system monitoring, and circuit protection.
