Components Location

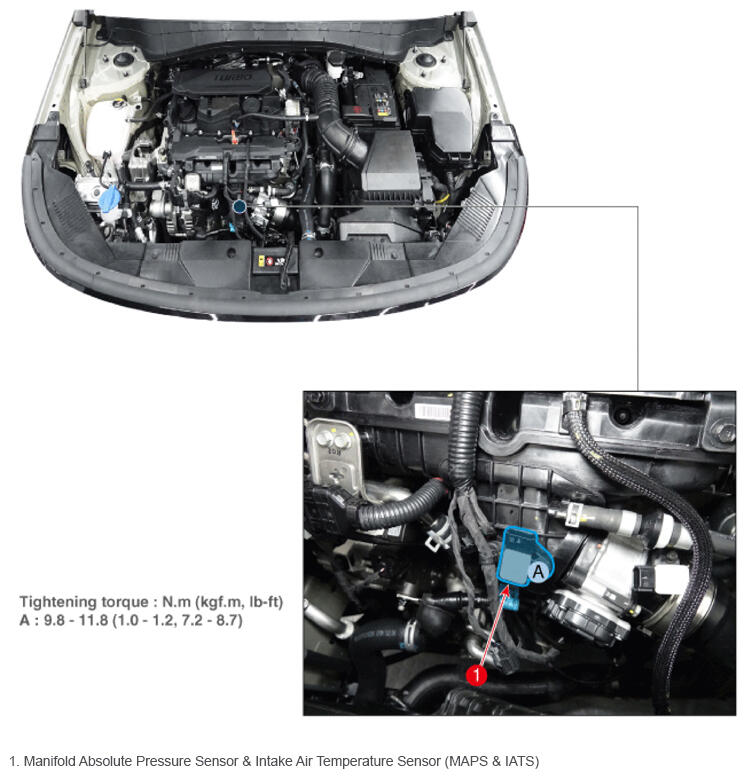

Fig 1: Manifold Absolute Pressure Sensor & Intake Air Temperature Sensor Components Location With Torque Specification
G16545587Courtesy of HYUNDAI MOTOR AMERICA
