Sensor Data Inspection

1. Connect GDS to Data Link Connector (DLC).

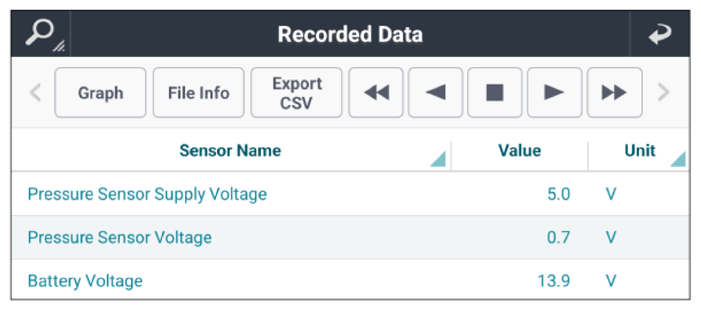

2. Start the engine and drive the vehicle. (while AWD is operating)
3. Check the sensor data output value by selecting "Pressure sensor" among the sensor data items of the diagnostic device (GDS).
4. Check if the normal value (Pressure value change according to AWD normal operation) is displayed.

Courtesy of HYUNDAI MOTOR AMERICA

OK

"Final DTC Checking"  procedure.

NG

"Inspection for Connector Connection State"  procedure.
