Repair Procedures: Disassembly

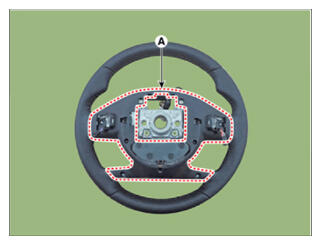

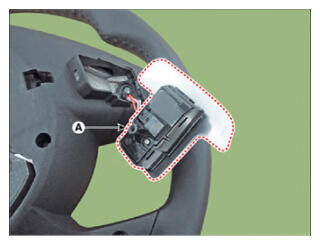

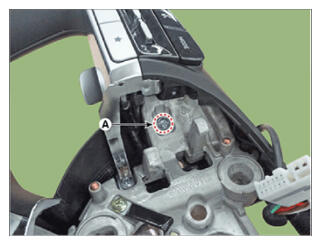

- Loosen the paddle shift switch mounting screw (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|
 Courtesy of HYUNDAI MOTOR AMERICA
|

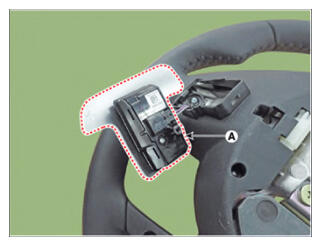

- Remove the paddle shift switch (A) after disconnecting the connector.
 Courtesy of HYUNDAI MOTOR AMERICA
|
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Remove the lower cover (A) after loosening the screw.
 Courtesy of HYUNDAI MOTOR AMERICA
|

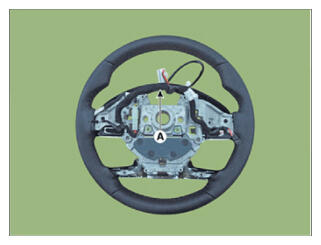

- Disconnect the wiring (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Remove the steering wheel bezel (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|

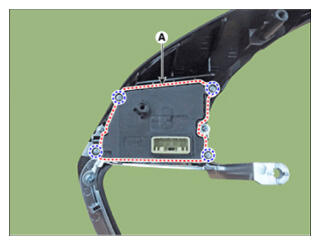

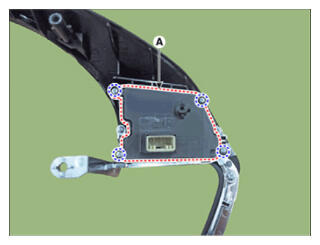

- Remove the remote control switch (A) after loosening the mounting screw.
 Courtesy of HYUNDAI MOTOR AMERICA
|
 Courtesy of HYUNDAI MOTOR AMERICA
|

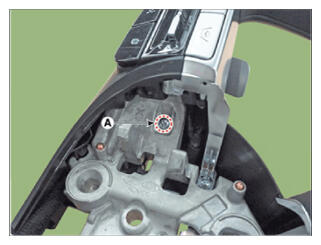

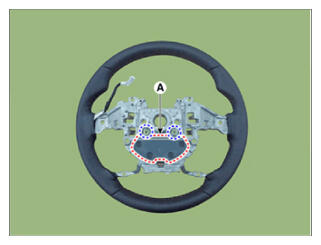

- Remove the steering wheel damper (A) after loosening the mounting bolts.
 Courtesy of HYUNDAI MOTOR AMERICA
|
