Description And Operation: Description

The active purge pump sensor is fitted to improve fuel injection compensation, to reduce exhaust gas emissions and to detect leakage from the fuel tank and canister purge line by purging forcibly with the active purge pump when purging the canister because engine running time is reduced and engine negative pressure generation is insufficient caused by the application of turbo engine to eco-friendly vehicles.

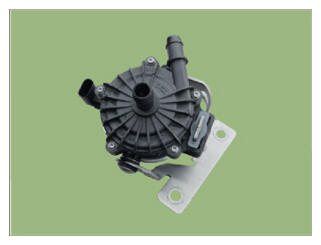

G16120059Courtesy of HYUNDAI MOTOR AMERICA
