Components Location

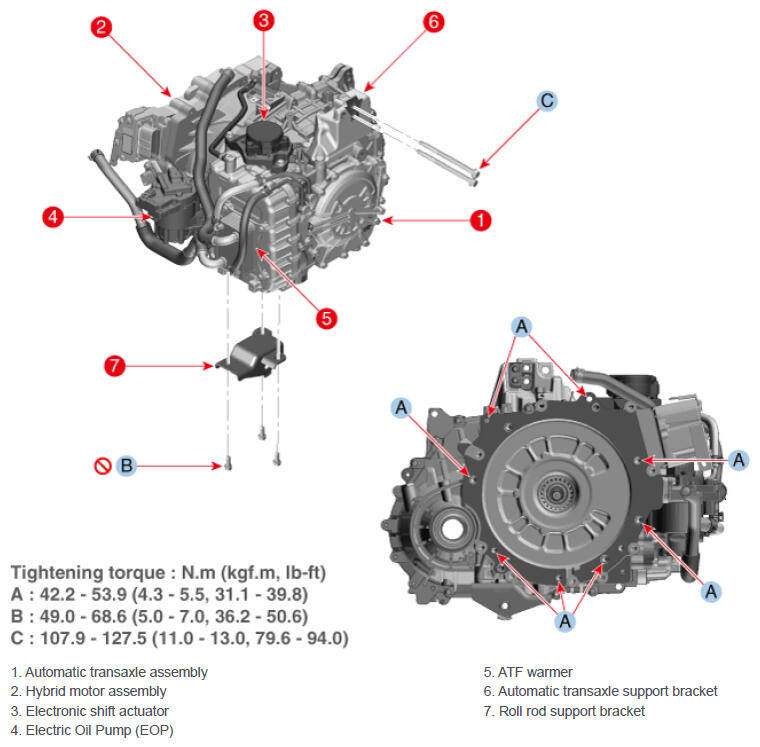

Fig 1: Automatic Transaxle Components Location With Torque Specification
G17091314Courtesy of HYUNDAI MOTOR AMERICA
