Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

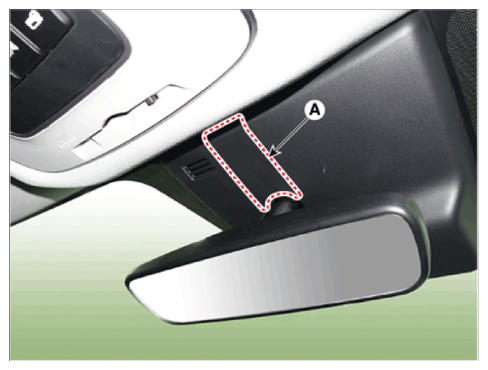

  2. Remove the inside rear view mirror cover (A)
    G14777113Courtesy of HYUNDAI MOTOR AMERICA

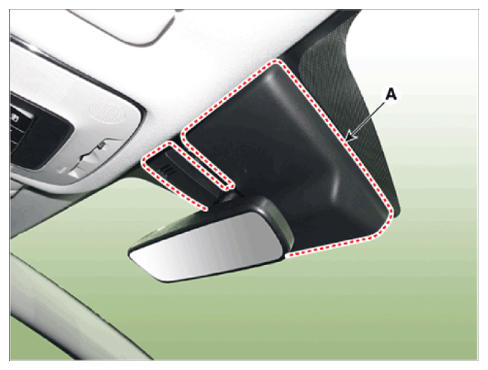

  3. Remove the front view camera cover (A).
    G14777114Courtesy of HYUNDAI MOTOR AMERICA

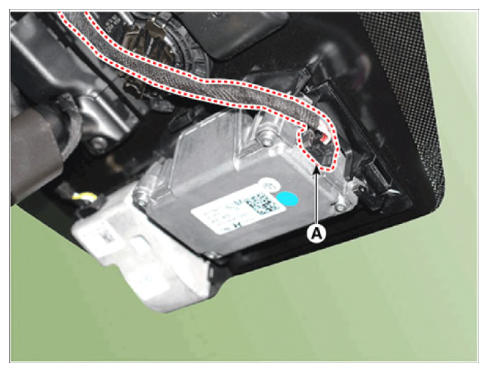

  4. Disconnect the front view camera connector (A).
    G14777115Courtesy of HYUNDAI MOTOR AMERICA

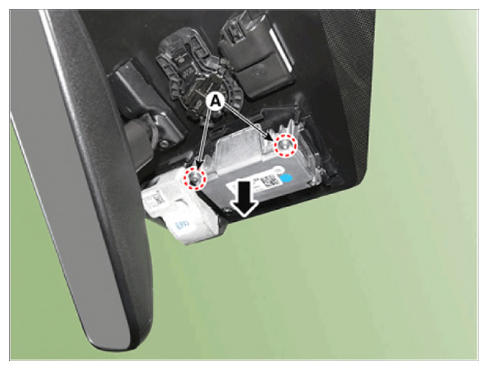

  5. Separate the fixed points (A) of coupler and remove the front view camera.
    NOTE:
    • Be careful not to break the hook (A).
    G14777116Courtesy of HYUNDAI MOTOR AMERICA
