Variant Coding Procedures

  1. Connect the cable of Diagnostic tool to the data link connector in driver side crash pad lower panel, and turn on the Diagnostic tool.

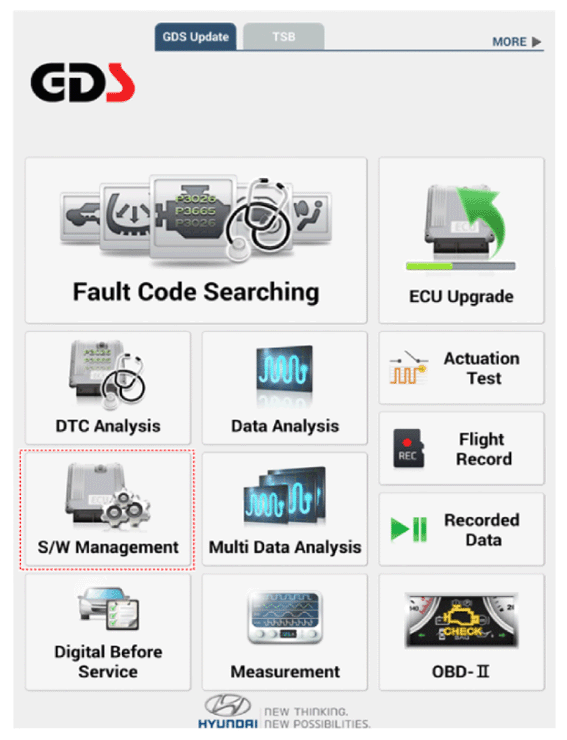

  2. Select the 'S/W Management' and 'Car model'.
    G14777224Courtesy of HYUNDAI MOTOR AMERICA

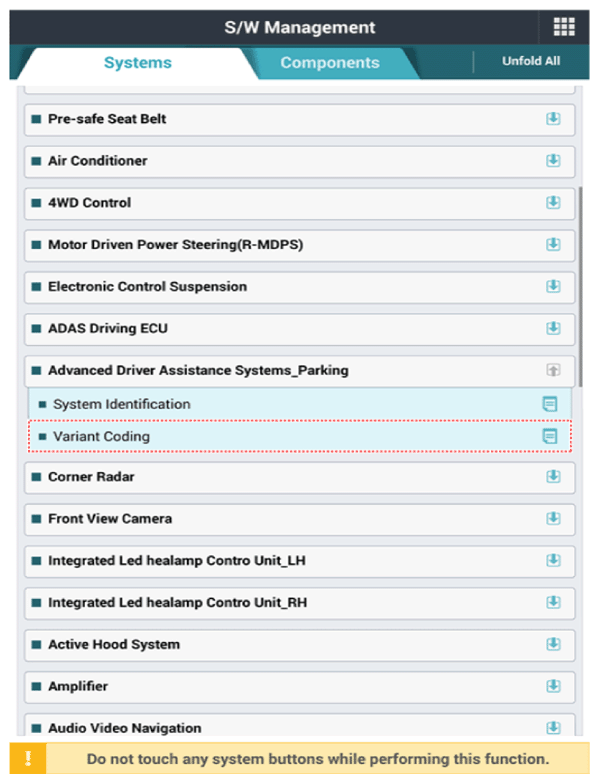

  3. Select the 'Advanced Driver Assistance Systems_Parking' and Variant Coding.
    G14777225Courtesy of HYUNDAI MOTOR AMERICA
