Diagnostic Flow-Chart

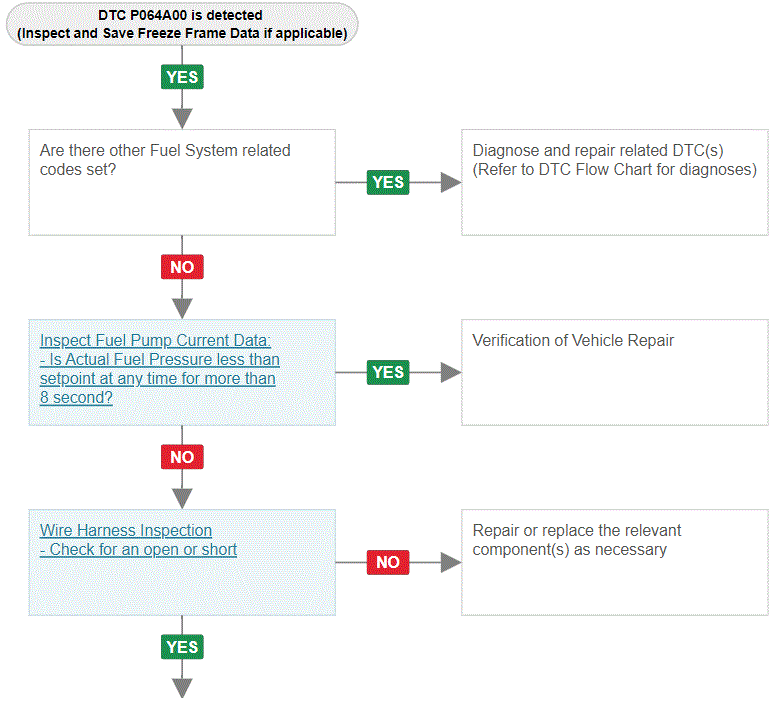

Fig 1: 1 Of 3
G14782572Courtesy of HYUNDAI MOTOR AMERICA

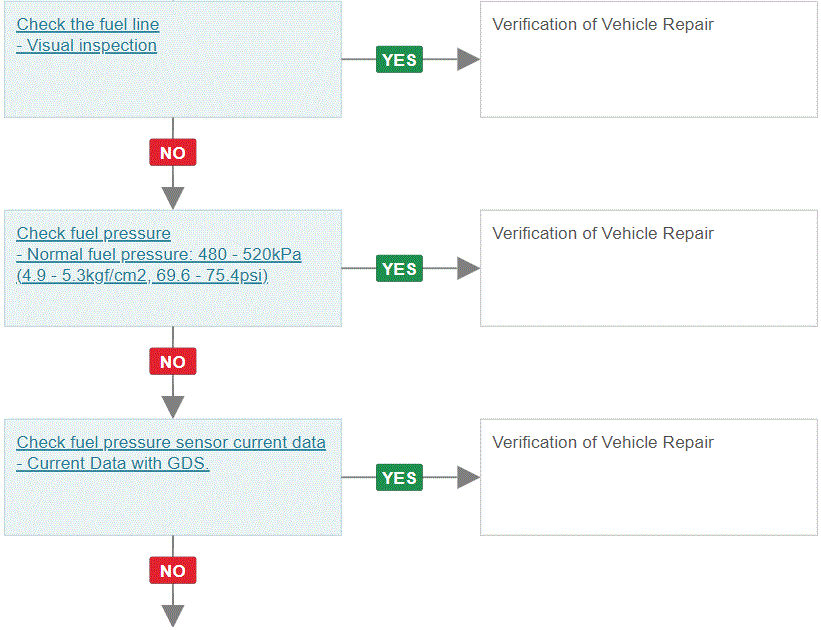

Fig 2: 2 Of 3
G00627748Courtesy of HYUNDAI MOTOR AMERICA

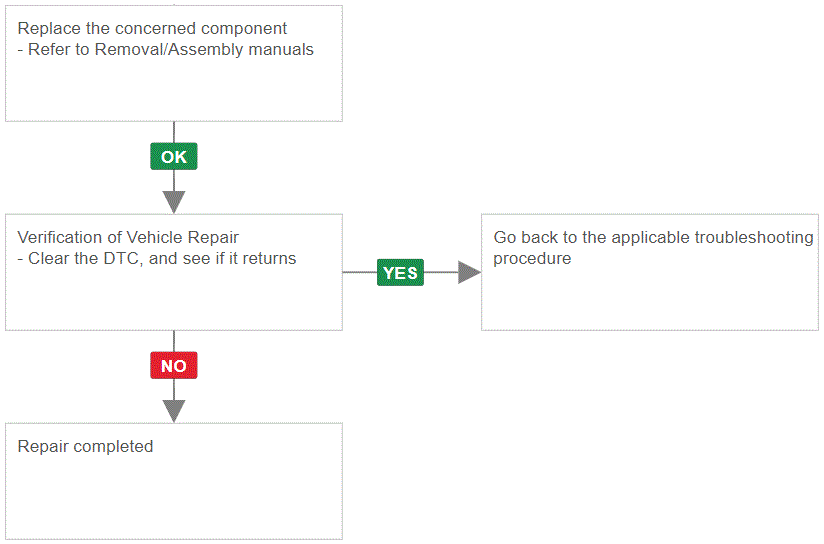

Fig 3: 3 Of 3
G00627749Courtesy of HYUNDAI MOTOR AMERICA
