DTC P106E-16: SBW Actuator Encoder Power - Circuit Short To Ground
>>
Troubleshooting
>>
Diagnostic Flowchart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

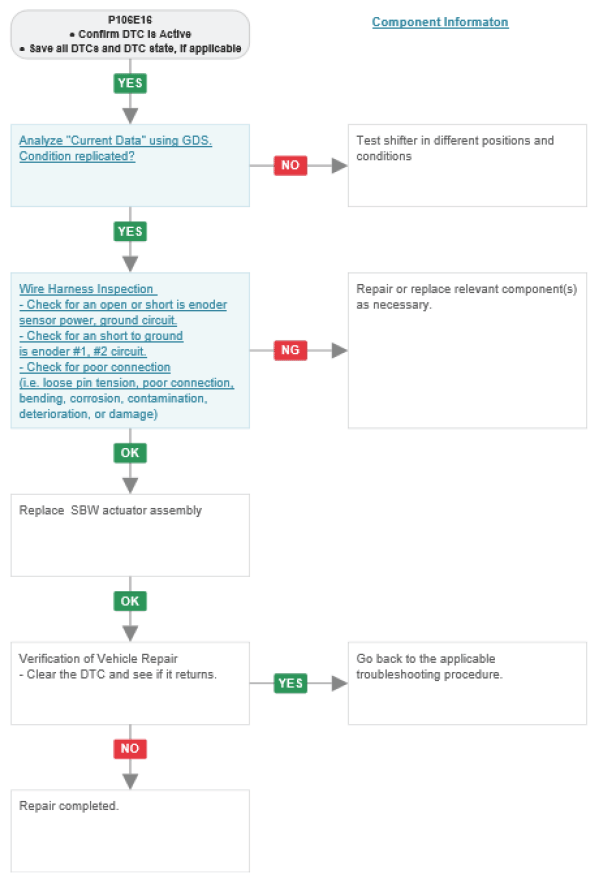

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
