Description And Operation: Description

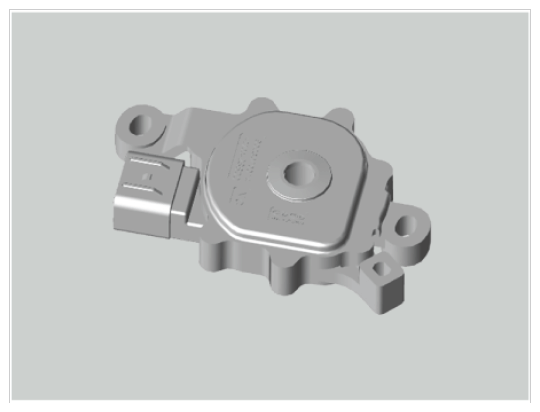

The Position switch is installed on top of transmission, and is connected to the shift lever through shift cable.
Position switch signals (S1, S2, S3, S4) are transmitted to the TCM according to the driver's shift lever control.
Courtesy of HYUNDAI MOTOR AMERICA
