Driven Pulley Pressure Sensor: Removal

NOTE:
  • Maintain clean condition so that foreign substance does not get into the Intelligent Variable Transmission (IVT).
  • Use a coated apron, latex gloves, and stainless tray to prevent foreign substance.
  • Intelligent Variable Transmission (IVT) is composed of delicate components. Be careful not to cause any damage on the component when assembling and disassembling.
  1. Disconnect the negative (-) battery cable.
  2. Remove the engine room under cover.

    (Refer to Engine Mechanical System - "ENGINE ROOM UNDER COVER ")

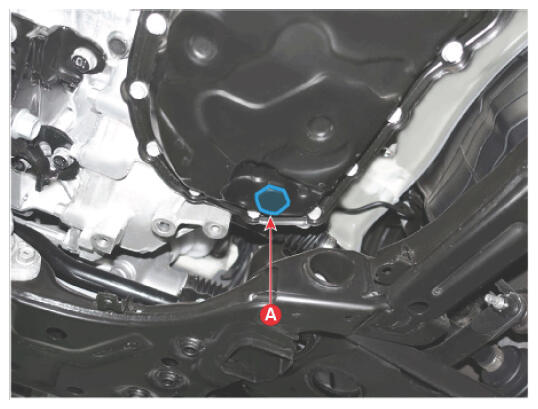

  3. Remove the IVTF drain plug (A), allow the fluid to drain out and then reinstall the drain plug.

    Tightening torque  :

    34.3 - 39.2 N.m (3.5 - 4.0 kgf.m, 25.3 - 28.9 lb-ft)

    G16543373Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Do not reuse Intelligent Variable Transmission Fluid(IVTF)
    • The existing IVTF drain plug gasket (A) must be replaced with a new one (do not reuse).
    G16543374Courtesy of HYUNDAI MOTOR AMERICA

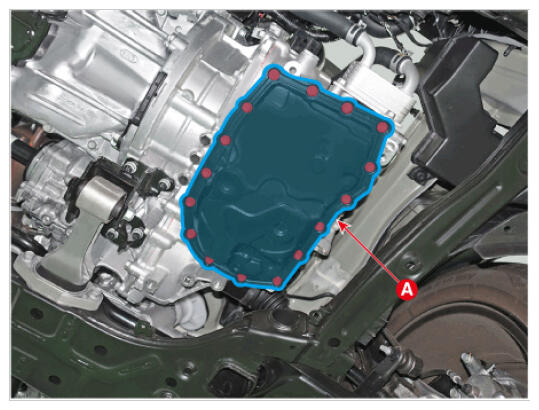

  4. Remove the valve body cover (A) after removing the bolts.
    G16543375Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • Be careful when removing the valve body cover because the remaining IVTF remains in the valve body cover.

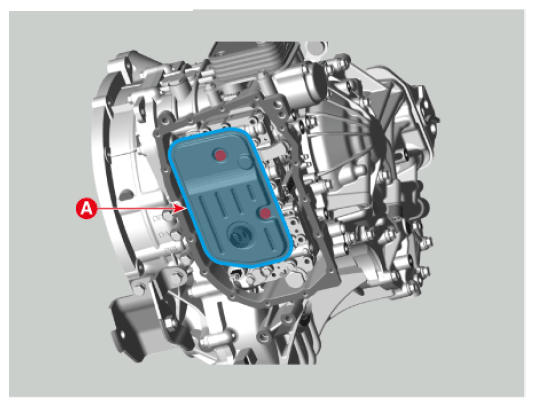

  5. Remove the IVTF filter (A) after removing the bolts.
    G16543377Courtesy of HYUNDAI MOTOR AMERICA

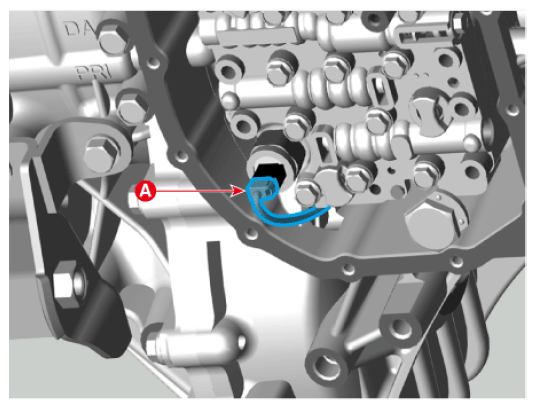

  6. Disconnect the driven pulley pressure sensor connector (A).
    G16543378Courtesy of HYUNDAI MOTOR AMERICA

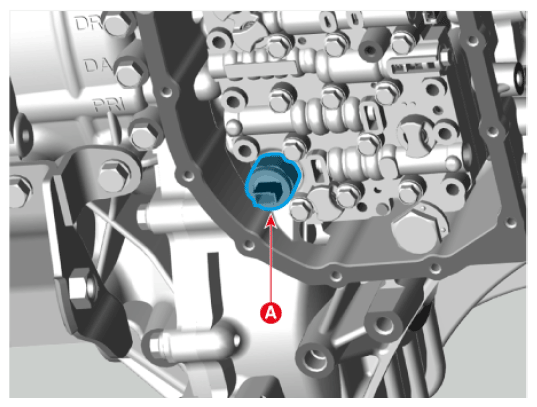

  7. Remove the driven pulley pressure sensor (A).
    G16543379Courtesy of HYUNDAI MOTOR AMERICA
