Smart Key Antenna (Door)

Disconnect the battery (-) terminal.
Remove the front door trim.
(Refer to Front Door - "FRONT DOOR TRIM ")

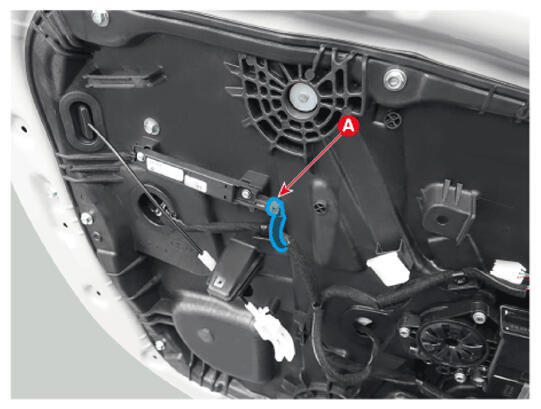

Disconnect the smart key antenna connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

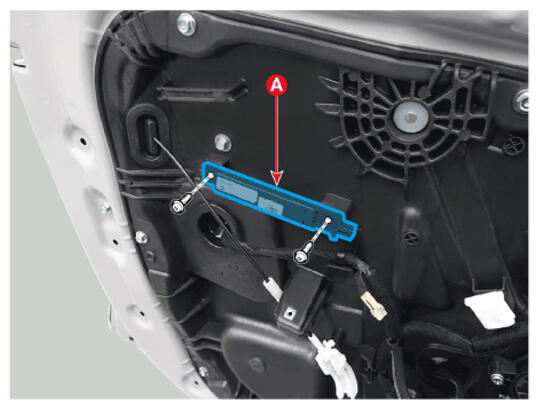

Remove the smart key antenna (A) after removing the screws.

Courtesy of HYUNDAI MOTOR AMERICA
Install in the reverse order of removal.
