Description And Operation: Description

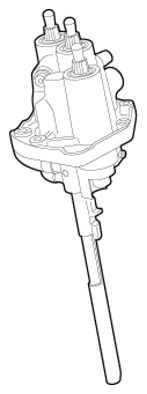

Component
Courtesy of HYUNDAI MOTOR AMERICA
Mounting location: Control shaft complete is mounted on the top of the manual transaxle, and select & shift cable are equipped.
Function: Change the gear by shifting a shift lever.
