Repair Procedures: Removal

1. Disconnect the battery (-) cable.
   CAUTION:

   • When lifting a vehicle using a lift, be careful not to damage the lower parts of the vehicle (floor under cover, fuel filter, fuel tank, canister). (Refer to LIFT AND SUPPORT POINTS )
2. Loosen the front wheel nuts slightly.

   Raise the vehicle, and make sure it is securely supported.

3. Remove the front wheel and tire.

   (Refer to Suspension System - "WHEEL ")

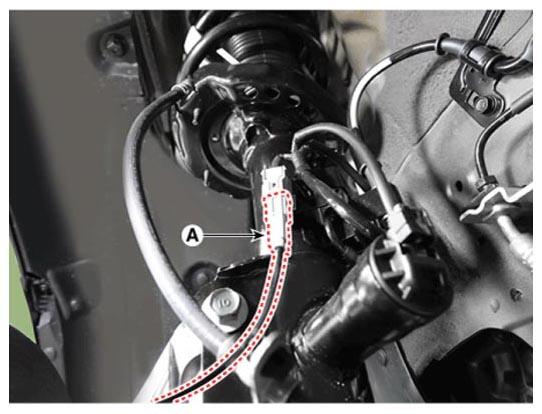

4. Disconnect the front wheel speed sensor connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

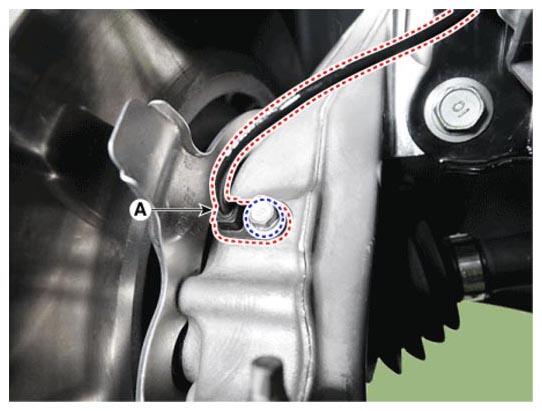

5. Remove the front wheel speed sensor (A) after loosening the mounting bolt.

Tightening torque:

7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
