Repair Procedures: Inspection

NOTE:
  • In order to protect the wheel speed sensor, when measuring output voltage, a 100Ω resister must be used as shown.

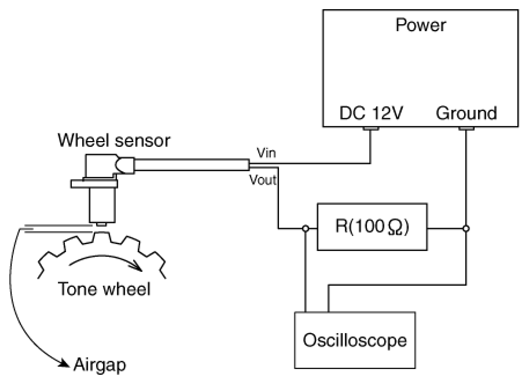

  1. Measure the output voltage between the terminal of the wheel speed sensor and the body ground.
    G16773214Courtesy of HYUNDAI MOTOR AMERICA
  2. Compare the change of the output voltage of the wheel speed sensor to the normal change of the output voltage as shown below.
    G16773215Courtesy of HYUNDAI MOTOR AMERICA
    • Ihigh: 11.9 ~ 16.1 mA
    • Ihigh: 5.95 ~ 8.05 mA
    • Frequency range: 0.03 ~ 3, 000 Hz
