[Longitudinal G Sensor Calibration]

  1. Connect the cable of diagnostic tool to the data link connector in driver side crash pad lower panel, and turn on the diagnostic tool.

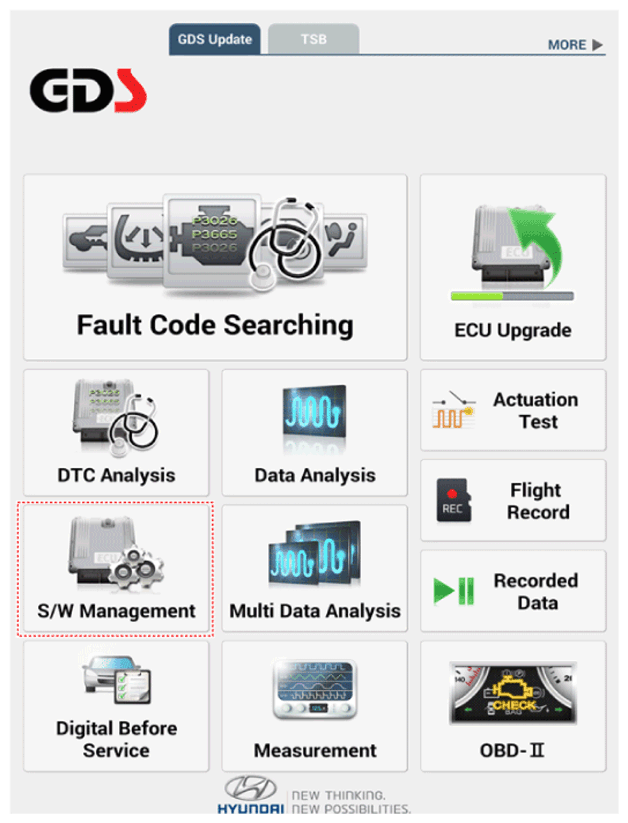

  2. Select the 'S/W Management' and 'Car model'.
    G16772947Courtesy of HYUNDAI MOTOR AMERICA

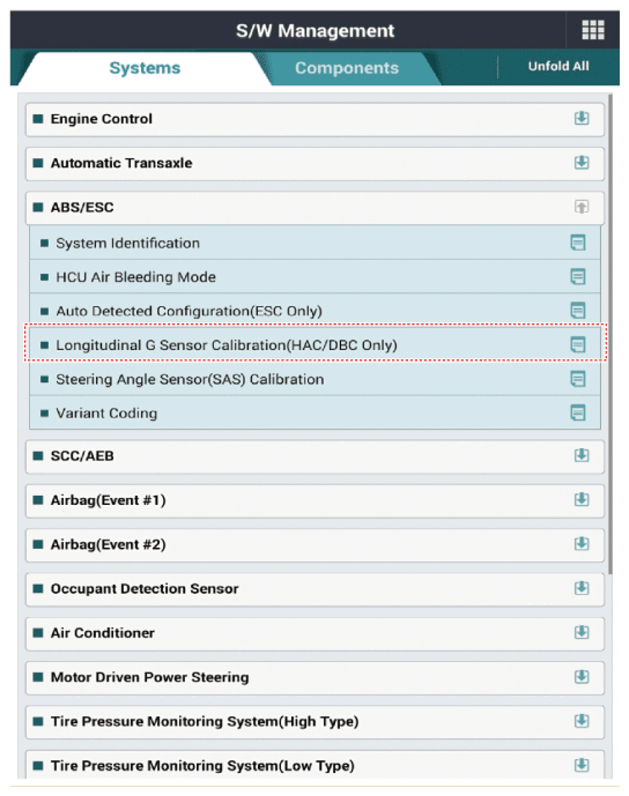

  3. Select "Longitudinal G Sensor Calibration".
G16772948Courtesy of HYUNDAI MOTOR AMERICA
CAUTION:
  • You must remove or install the SRSCM or other SRS components with the ignition switch OFF to avoid accidental airbag deployment.
