DTC P2270-00: O2 Sensor Signal Stuck Lean (Bank 1 Sensor 2)
>>
Troubleshooting
>>
Diagnostic Flowchart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

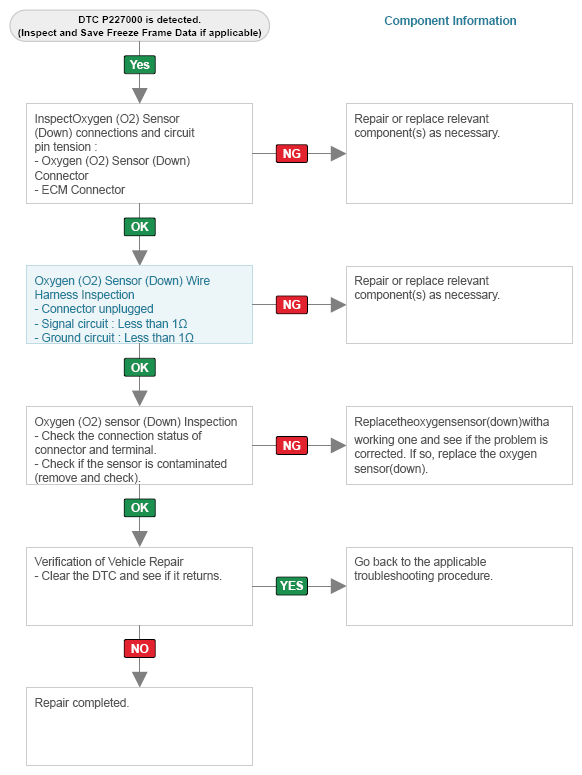

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
