Repair Procedures: Removal

Turn the steering wheel so that the front wheels can face straight ahead.
Turn the ignition switch OFF and disconnect the battery negative (+) cable.
Remove the driver airbag module.
(Refer to Restraint - " DRIVER AIRBAG (DAB) MODULE AND CLOCK SPRING REPAIR PROCEDURES ")

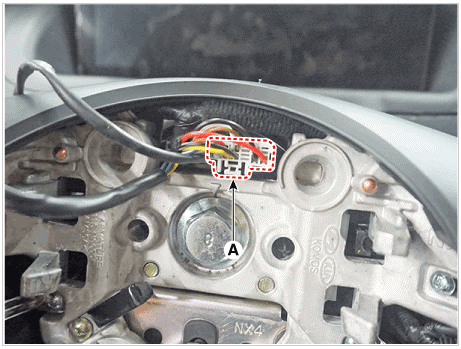

Disconnect the steering wheel connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

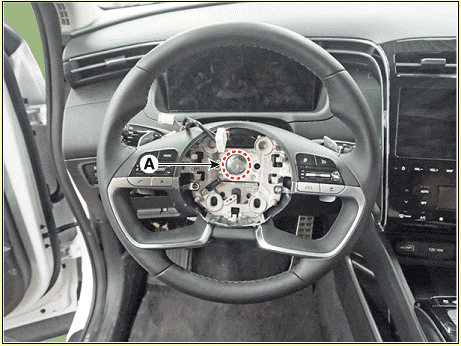

Remove the steering wheel after loosening the bolt (A).
Tightening torque:

44.1 - 49.0 N.m (4.5 - 5.0 kgf.m, 32.5 - 36.2 lb.ft)

Courtesy of HYUNDAI MOTOR AMERICA
NOTE:
- Do not reuse the steering lock bolt.
- When assembling, match the gear teeth as shown in the illustration.
