Monitor GDS Data

  1. Connect GDS to Data Link Connector (DLC).
  2. Engine "ON" & select SCU system.
  3. Select "Current Data" mode.
  4. Change a shift lever from P-range to D-range.

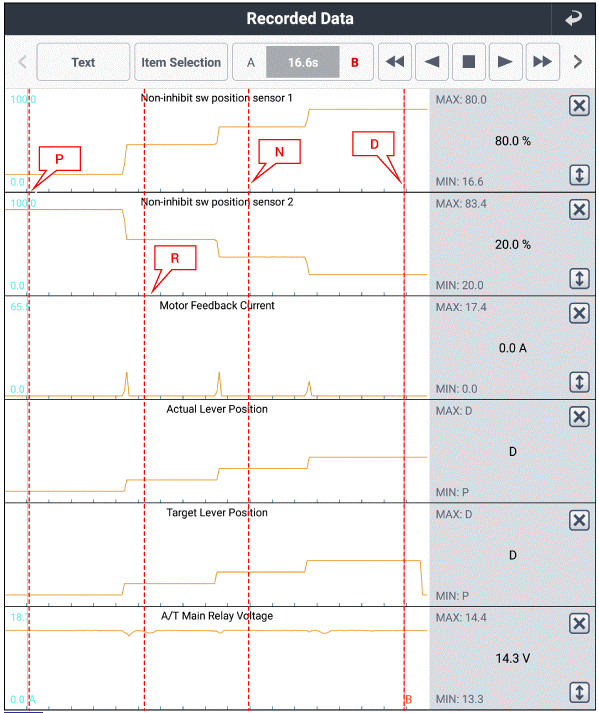

G16172828Courtesy of HYUNDAI MOTOR AMERICA
