Component Function: SCU

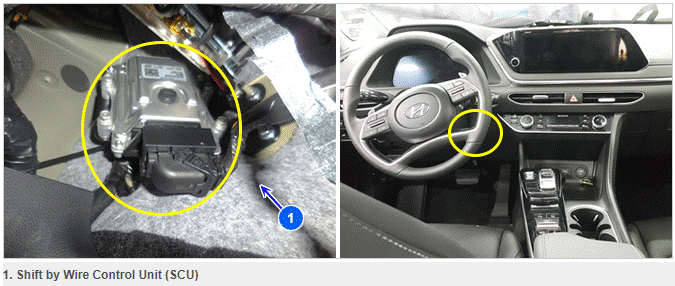

G16172793Courtesy of HYUNDAI MOTOR AMERICA

The electronic transmission system controller (SCU) receives the current position signal from the SBW actuator & position sensor.
