Description & Operation: Description

Output position signal (P, R, N, D) by the actuator operation to the controller (SBW Control Unit_SCU).

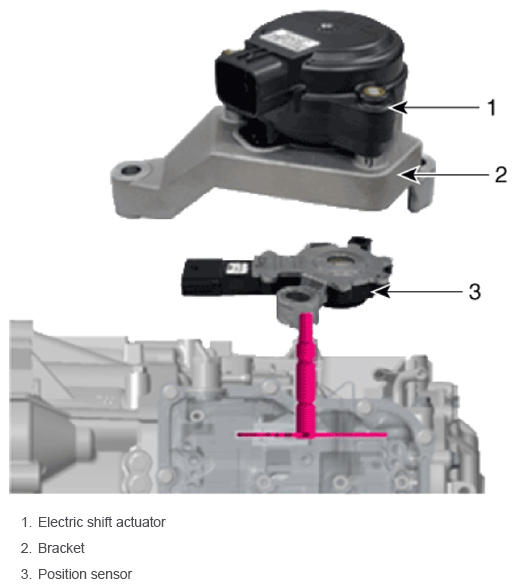

G14626350Courtesy of HYUNDAI MOTOR AMERICA
