Steering Angle Sensor

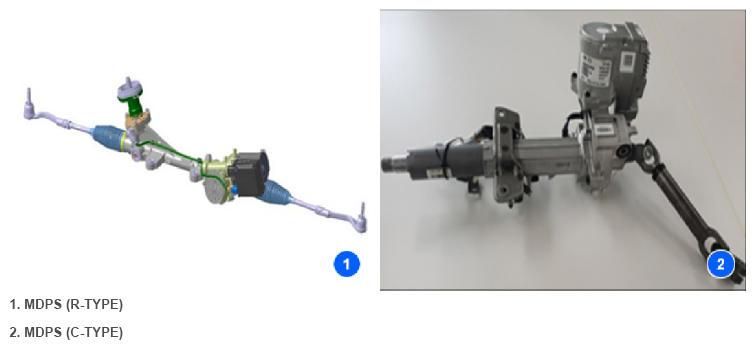

G14543020Courtesy of HYUNDAI MOTOR AMERICA

EPS (MDPS=Motor Driving Power Steering) is basically to support steering force, which is installed in torque sensor to secure natural steering force. (C type MDPS built in steering wheel sensor, R type MDPS: Steering Sensor (Located in multi function switch). Steering angle and speed realize more advanced EPS function.
