Engine Control System Diagnosis (9 Of 9)
>>
DTC P2297-00: O2 Sensor Out of Range During Deceleration - (Bank 1 Sensor 1)
>>
Troubleshooting
>>
Diagnostic Flowchart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

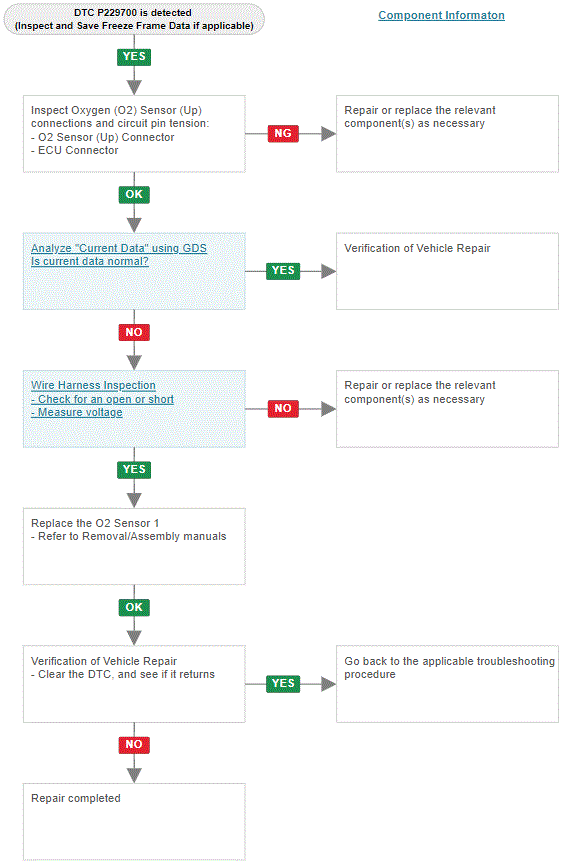

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
