Components Location

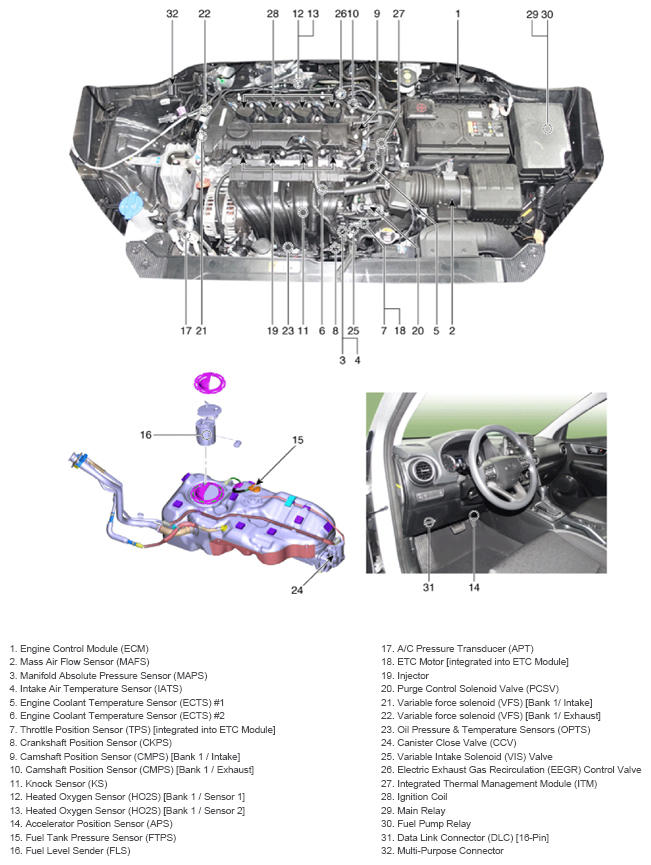

G14714365Courtesy of HYUNDAI MOTOR AMERICA

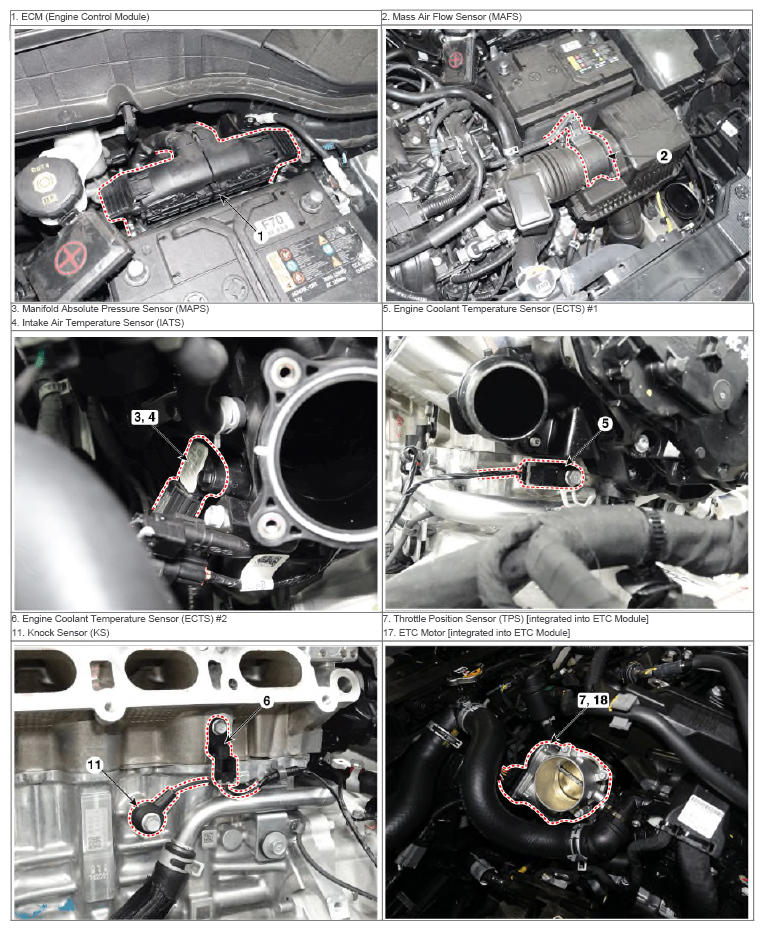

G14714366Courtesy of HYUNDAI MOTOR AMERICA

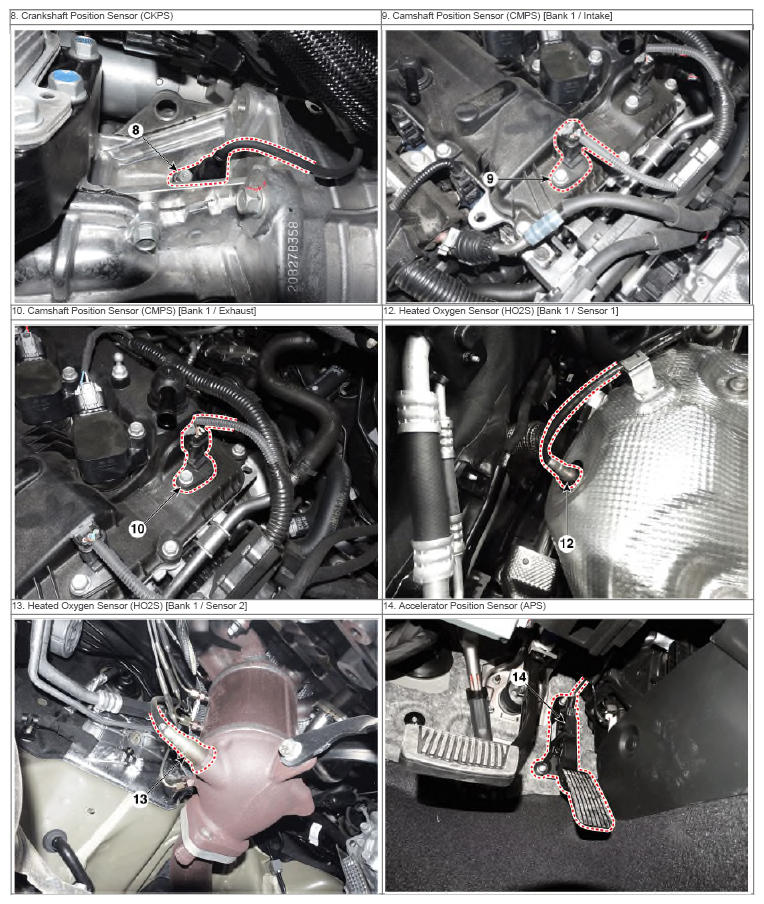

G14714367Courtesy of HYUNDAI MOTOR AMERICA

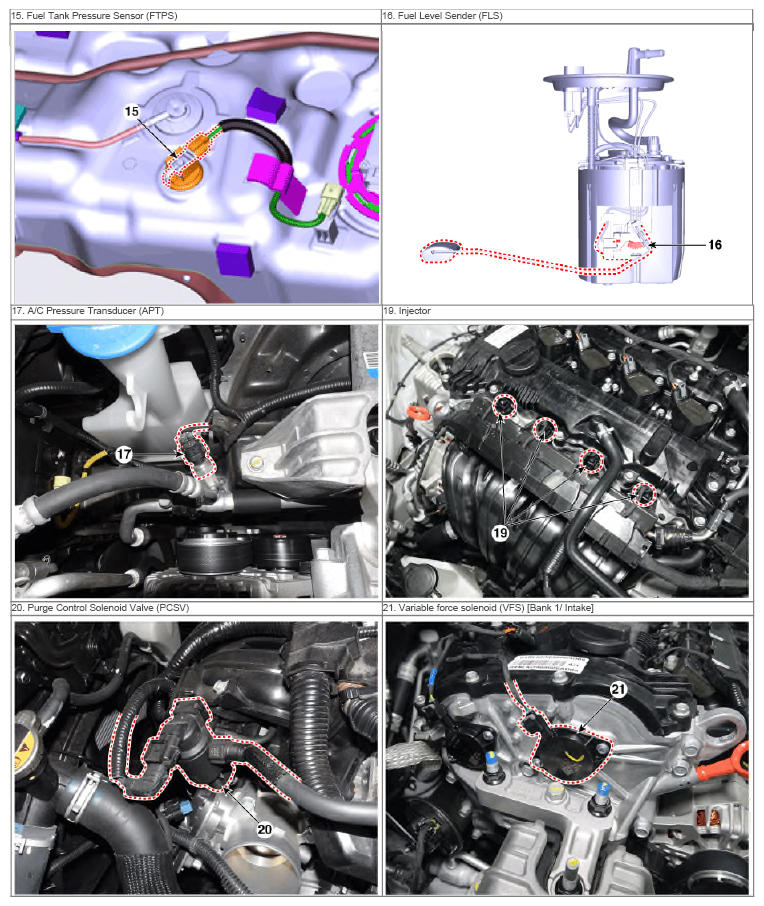

G14714368Courtesy of HYUNDAI MOTOR AMERICA

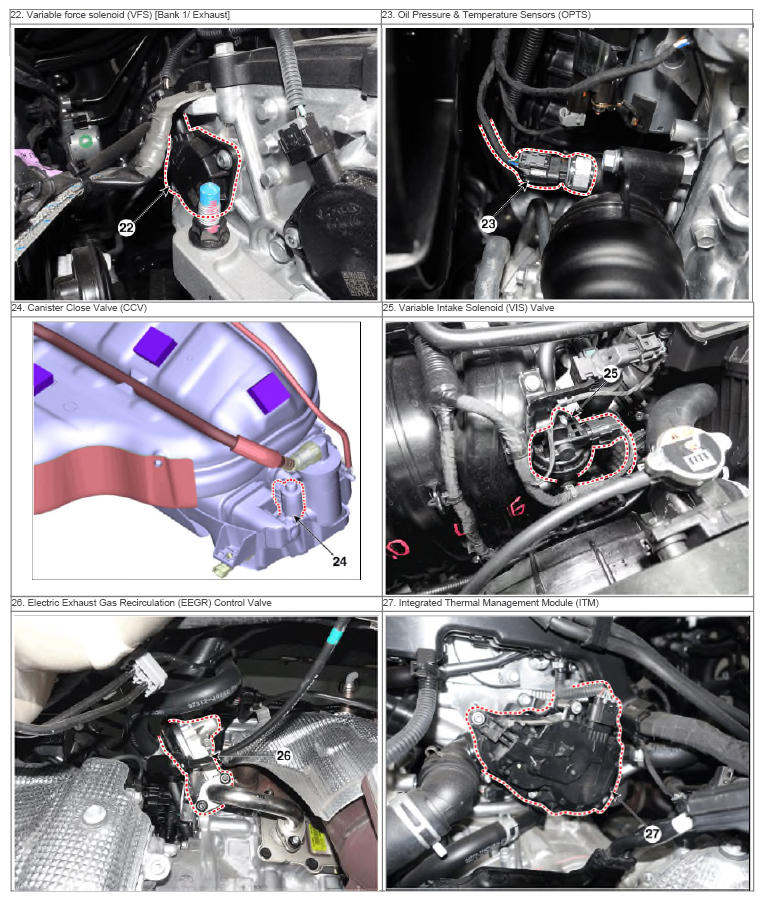

G14714369Courtesy of HYUNDAI MOTOR AMERICA

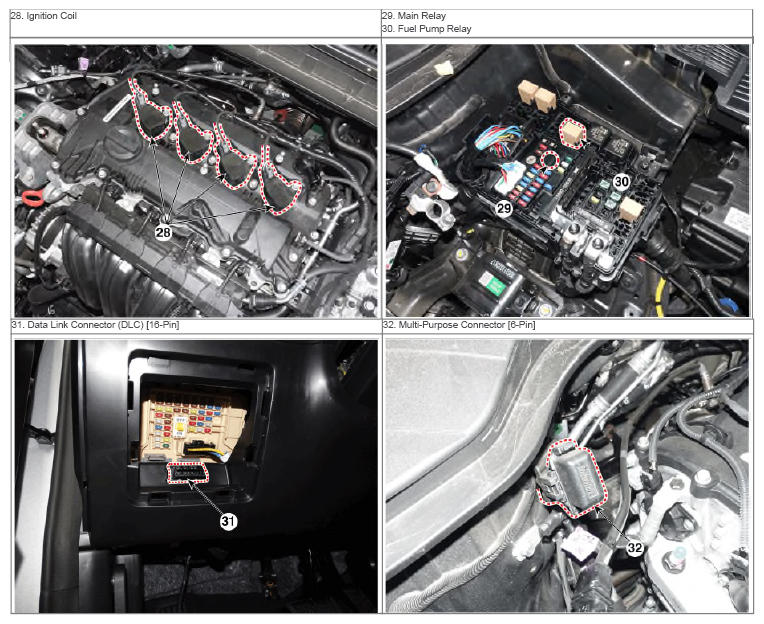

G14714370Courtesy of HYUNDAI MOTOR AMERICA
