Repair Procedures: Removal: Buzzer

WARNING: This page is about a different car, the 2022 Hyundai Kona N. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the front left wheel guide. (Refer to Body - "FRONT WHEEL GUARD ")

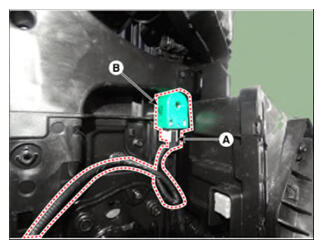

  3. Remove the buzzer (B) after disconnect the connector (A)
    G16188324Courtesy of HYUNDAI MOTOR AMERICA
