Repair Procedures: Removal

  1. Disconnect the battery (-) terminal.

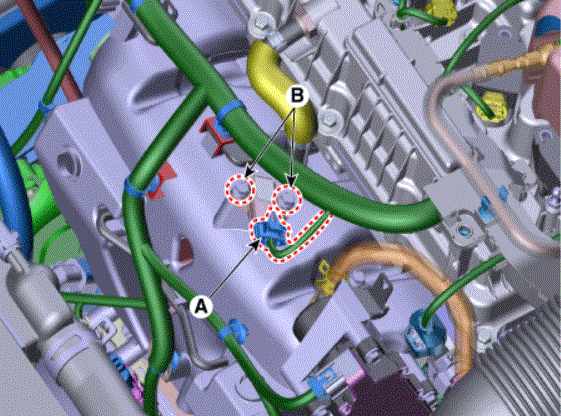

  2. Disconnect the MAPS & IATS connector (A).
  3. Remove the installation bolt (B), and then remove the sensor from the surge tank.
G16186117Courtesy of HYUNDAI MOTOR AMERICA
