Smart Key Unit

  1. Disconnect the negative (-) battery terminal.
  2. Remove the glove box.

    (Refer to Body - "GLOVE BOX ")

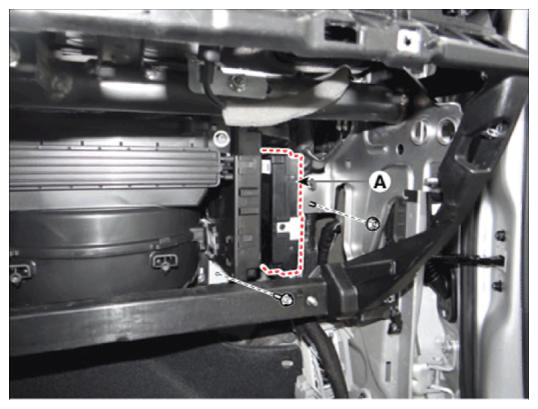

  3. Remove the smart key unit (A), after loosening the bolt and nut.
    G14712989Courtesy of HYUNDAI MOTOR AMERICA

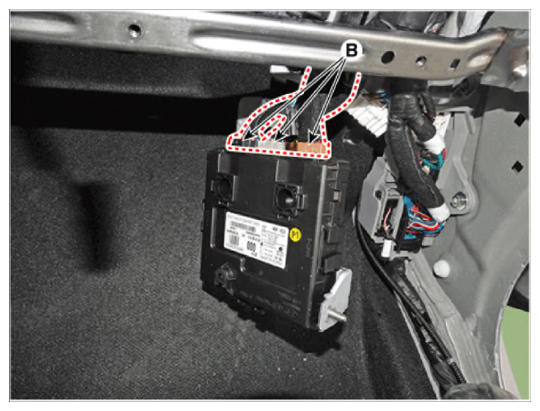

  4. Disconnect the smart key unit connector (B).
    G14712990Courtesy of HYUNDAI MOTOR AMERICA
