DTC P24BB-00: EVAP System Leak Detection Pump Pressure Sensor Circuit High
>>
Troubleshooting
>>
Diagnostic Flowchart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Diagnostic Flowchart

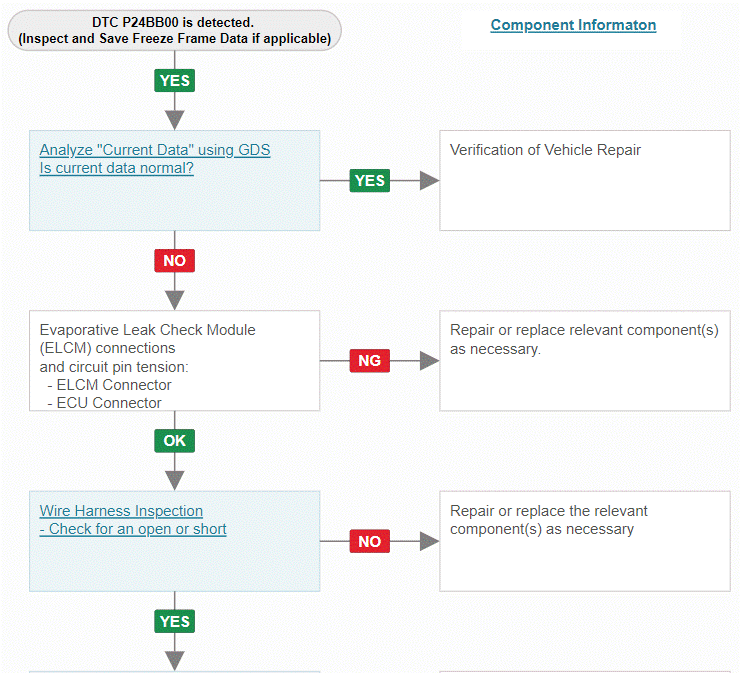

Fig 1: (1 of 2)
Courtesy of HYUNDAI MOTOR AMERICA

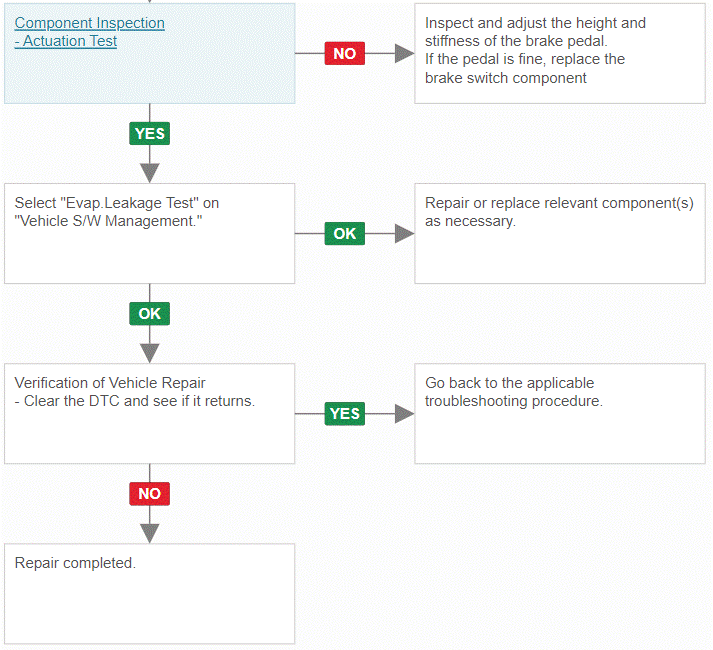

Fig 2: (2 of 2)
Courtesy of HYUNDAI MOTOR AMERICA
