Engine Control System Diagnosis (PHEV) (6 Of 8)
>>
DTC P064A-00: Fuel Pump Control Module
>>
Troubleshooting
>>
Diagnostic Flowchart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Flowchart

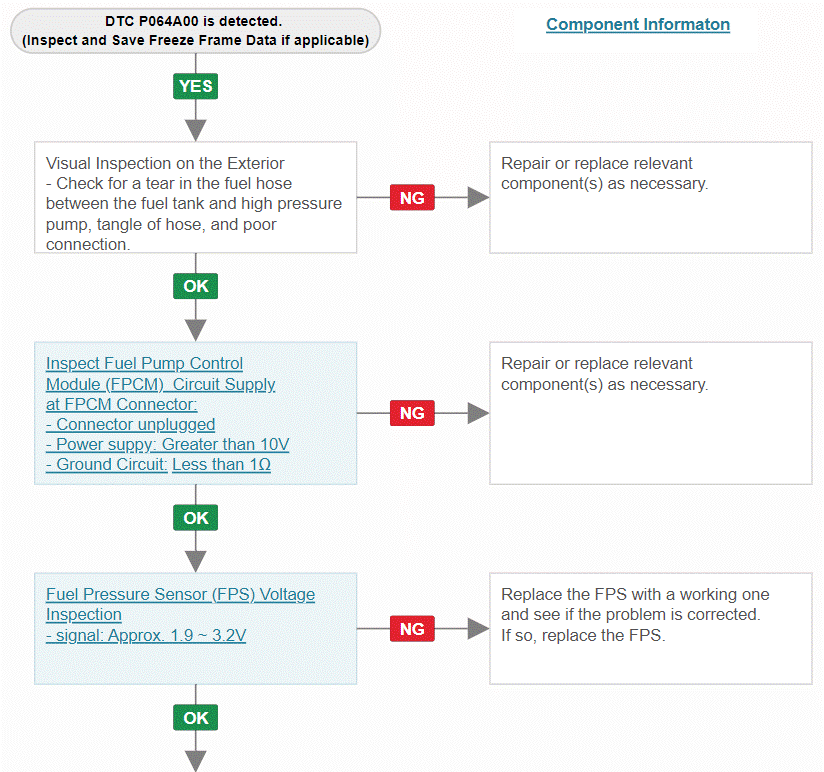

Fig 1: (1 of 2)
Courtesy of HYUNDAI MOTOR AMERICA

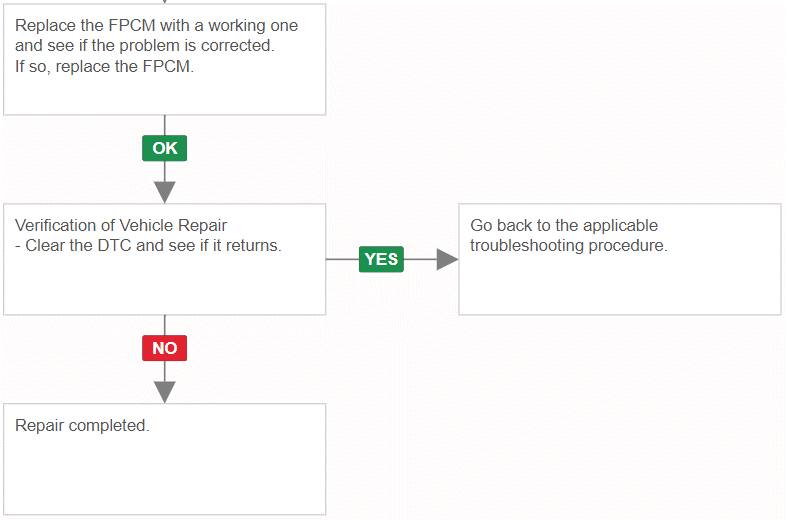

Fig 2: (2 of 2)
Courtesy of HYUNDAI MOTOR AMERICA
