Engine Control System Diagnosis (PHEV) (2 Of 8)
>>
DTC P013E-00: O2 Sensor Delayed Response - Rich To Lean Bank 1 Sensor 2
>>
Troubleshooting
>>

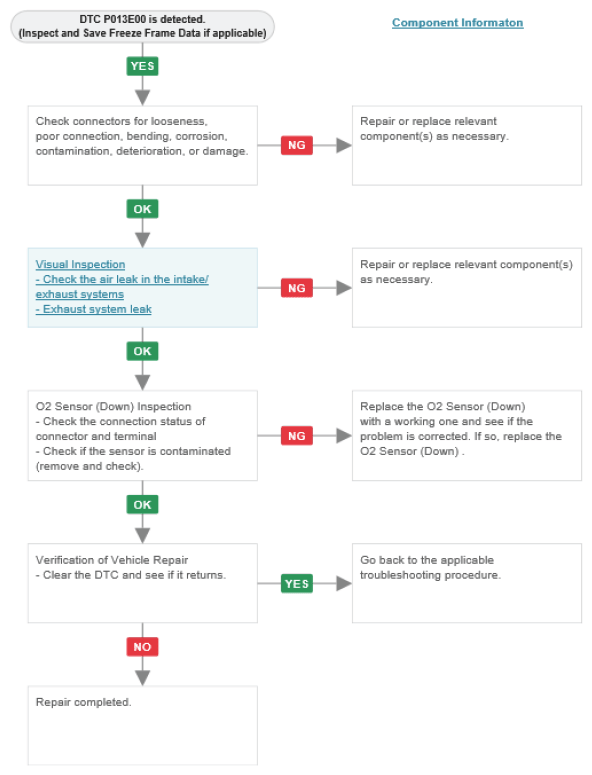

Diagnostic Flowchart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
