DTC U0121-82: Lost Communication With Anti-Lock Brake System (ABS) Control Module
>>
Troubleshooting
>>
Diagnostic Flowchart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

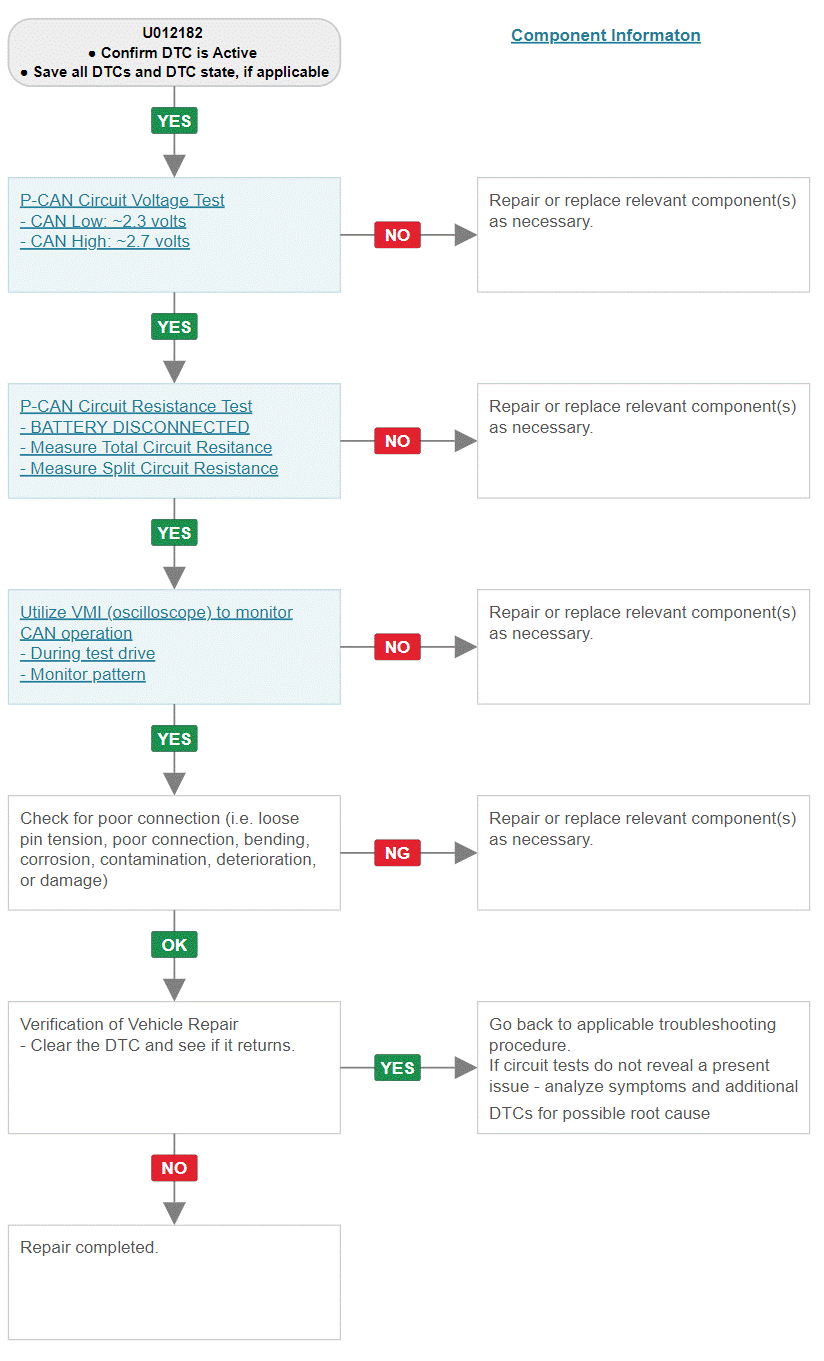

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
