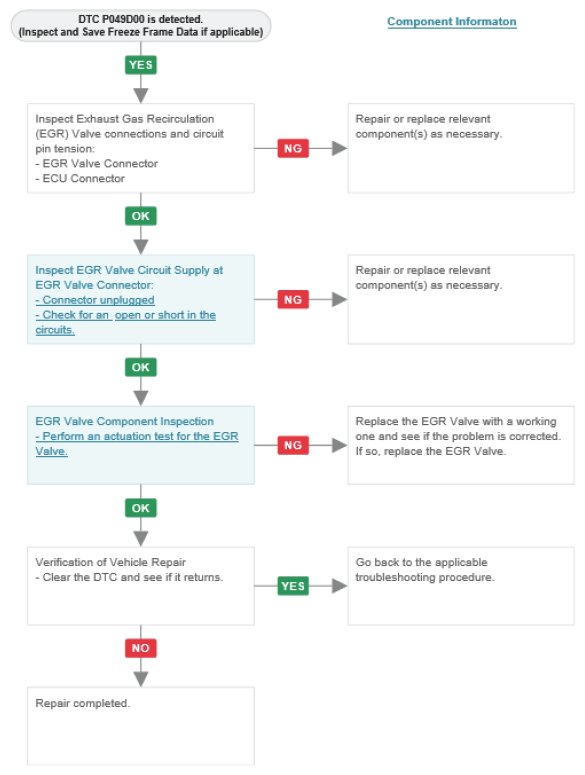

Diagnostic Flowchart

G16170497Courtesy of HYUNDAI MOTOR AMERICA
CAUTION: The learnt value must be reset after replacing the EGR valve. Otherwise, problems regarding performance and exhaust may occur until the automatic learning takes place after component replacement.
