Engine Coolant Temperature Sensor (ECTS) #1 [ITM Side]

  1. Remove the air cleaner assembly.

    (Refer to Engine Mechanical System - "AIR CLEANER ")

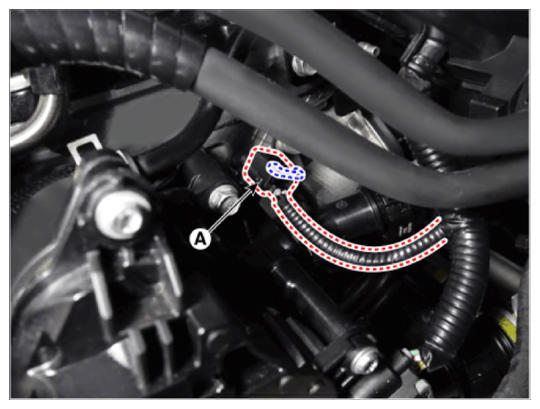

  2. Disconnect the engine coolant temperature sensor (ECTS) connector (A).
    G14676828Courtesy of HYUNDAI MOTOR AMERICA

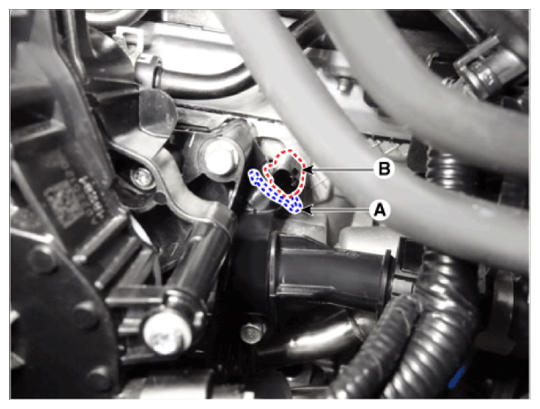

  3. Release the fixing clip (A) and then removing the ECTS (B).
    Fig 1: Engine Coolant Temperature Sensor (ECTS) #1 [ITM Side] Components Location
    G14676829Courtesy of HYUNDAI MOTOR AMERICA
