Components & Components Location: Components

[2WD]

[4WD]

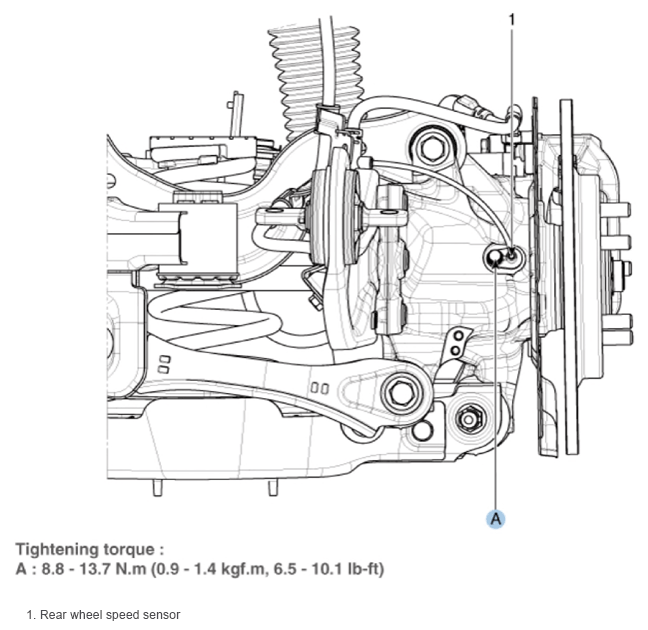

Fig 1: Rear Wheel Speed Sensor Components Location With Torque Specification (4WD)
G14775835Courtesy of HYUNDAI MOTOR AMERICA
