Components & Components Location: Components

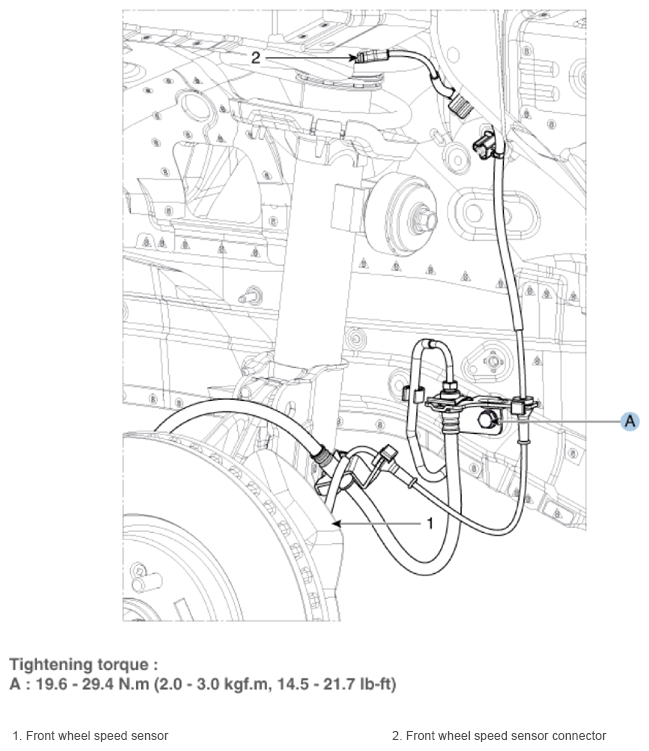

Fig 1: Front Wheel Speed Sensor Components Location With Torque Specification
G14775830Courtesy of HYUNDAI MOTOR AMERICA

Tightening torque:

  1. 19.6 - 29.4 N.m (2.0 - 3.0 kgf.m, 14.5 - 21.7 lb - ft)
