Repair Procedures: Replacement: Notes

CAUTION:
  • Do not disassembly the steering gear box.
  • If disassembly the steering gear box, the quality (Noise/cleanliness/functions) is not guaranteed.

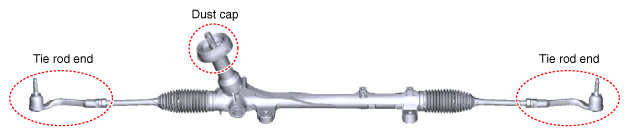

    [C-MDPS]

    G14426794Courtesy of HYUNDAI MOTOR AMERICA

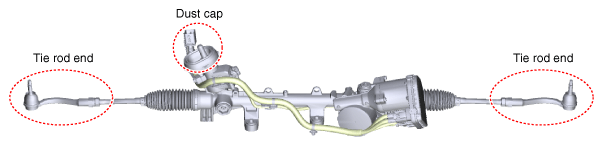

    [R-MDPS]

    G14426795Courtesy of HYUNDAI MOTOR AMERICA
