Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

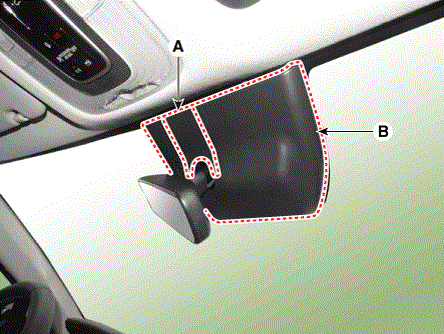

  2. Remove the cover (A) & (B).
    G16179373Courtesy of HYUNDAI MOTOR AMERICA

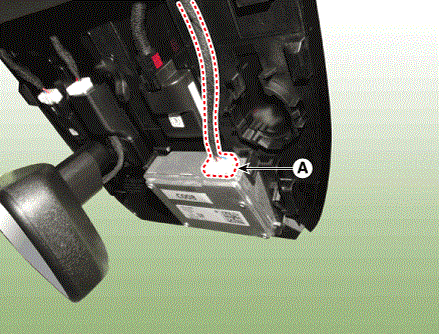

  3. Disconnect the front view camera unit connector (A).
    G16179374Courtesy of HYUNDAI MOTOR AMERICA

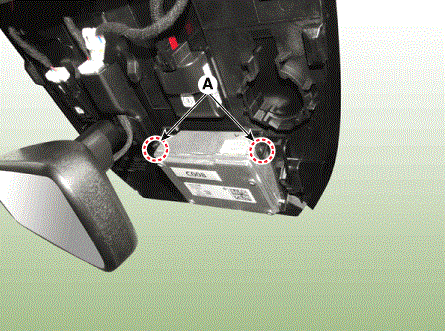

  4. Separate the fixed points (A) of coupler.
    G16179375Courtesy of HYUNDAI MOTOR AMERICA

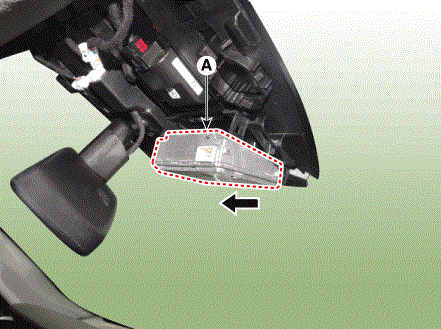

  5. Remove the front view camera (A).
G16179376Courtesy of HYUNDAI MOTOR AMERICA
