Engine Control System Diagnosis (4 Of 6)
>>
DTC P061B-00: Internal Control Module Torque Calculation Performance
>>
Troubleshooting
>>
Diagnostic Flowchart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

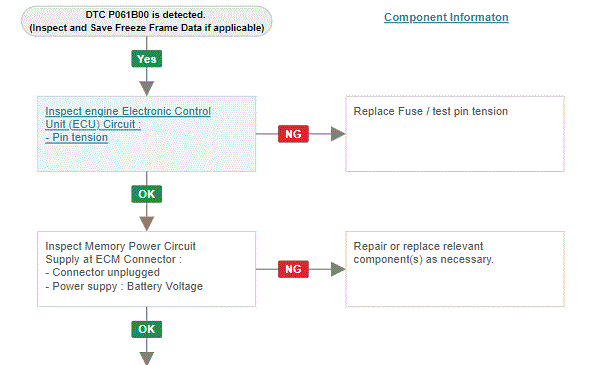

Diagnostic Flowchart
Fig 1: 1 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
Fig 2: 2 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
