Diagnostic Flow-Chart

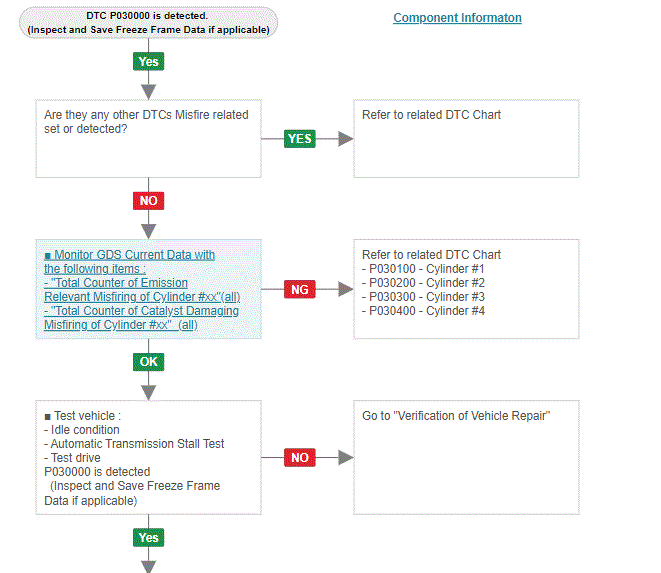

Fig 1: 1 Of 3
G16180312Courtesy of HYUNDAI MOTOR AMERICA

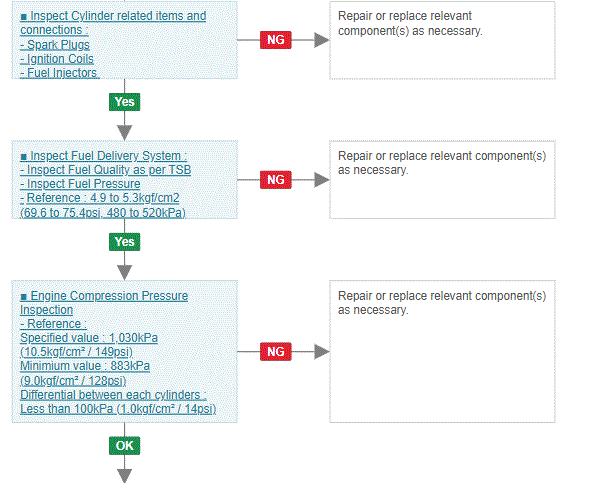

Fig 2: 2 Of 3
G00664525Courtesy of HYUNDAI MOTOR AMERICA

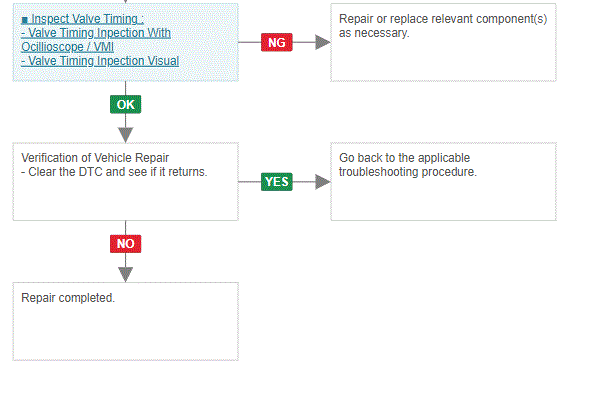

Fig 3: 3 Of 3
G00664526Courtesy of HYUNDAI MOTOR AMERICA
