Engine Control System Diagnosis (3 Of 6)
>>
DTC P0223-00: Throttle Position Sensor 2 Signal Circuit High Input
>>
Troubleshooting
>>
Diagnostic Flow-Chart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Diagnostic Flow-Chart

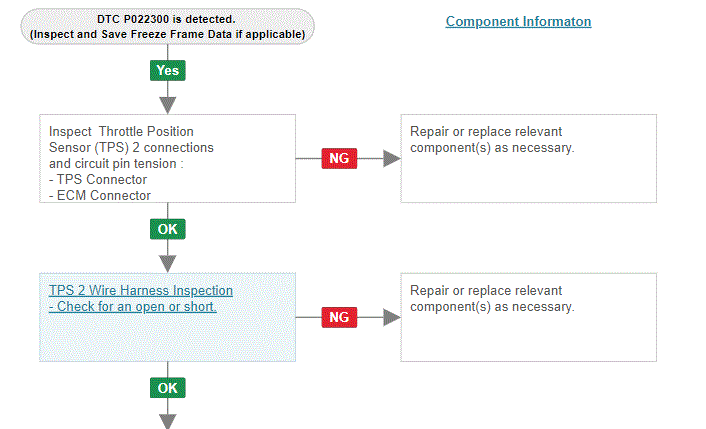

Fig 1: 1 Of 2
Courtesy of HYUNDAI MOTOR AMERICA

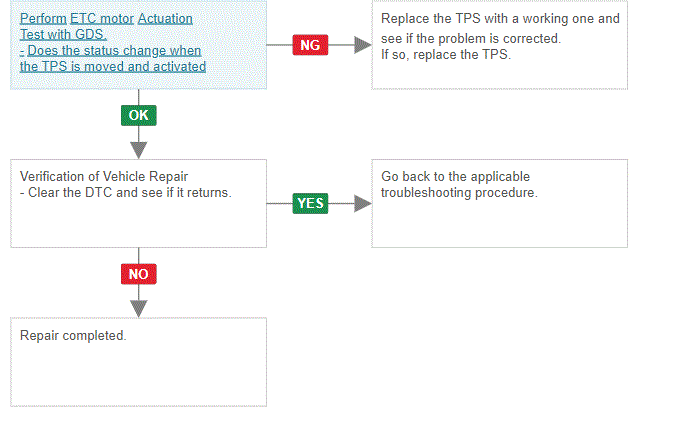

Fig 2: 2 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
