Repair Procedures: Installation
- To install, reverse the removal procedures.
NOTE:

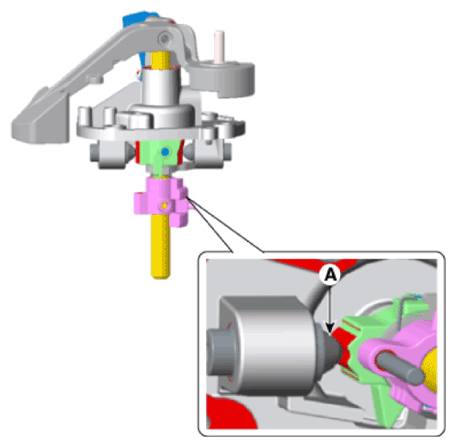

- When installing, set control shaft lever to neutral position (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|

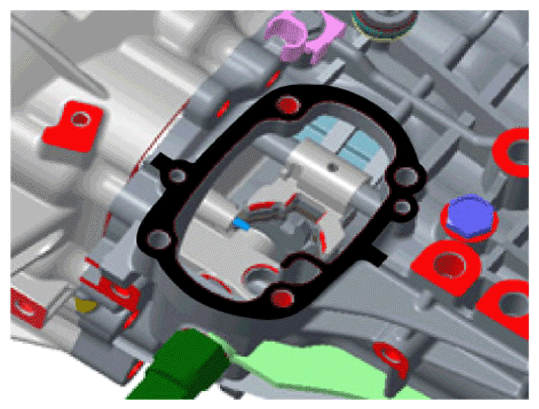

- Apply the sealant to the contact surface of transaxle and control shaft. Specified sealant:
LOCTITE 5060
 Courtesy of HYUNDAI MOTOR AMERICA
|
- After installing, check to be sure that this part operates as designed at each range of transaxle side corresponding to each position of shift lever.
