Repair Procedures: Removal

  1. Shift the gear to "N".
  2. Remove the air cleaner and air duct.

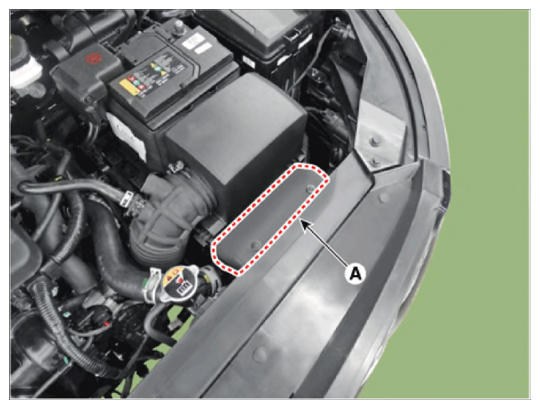

    1. Remove the air duct (A).
      G14694836Courtesy of HYUNDAI MOTOR AMERICA

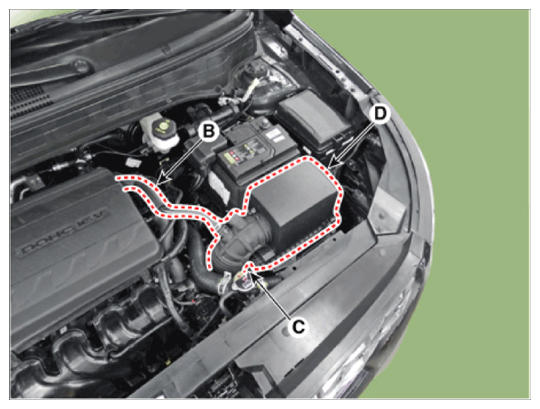

    2. Disconnect the breather hose (B) and air intake hose (C).
    3. Remove the air cleaner assembly (D).

      Tightening torque:

      Hose clamp bolt (C):

      2.9 - 4.9 N.m (0.3 - 0.5 kgf.m, 2.1 - 3.6 lb-ft)

      Air cleaner assembly bolts (D):

      3.9 - 5.9 N.m (0.4 - 0.6 kgf.m, 2.9 - 4.3 lb-ft)

      G14694837Courtesy of HYUNDAI MOTOR AMERICA

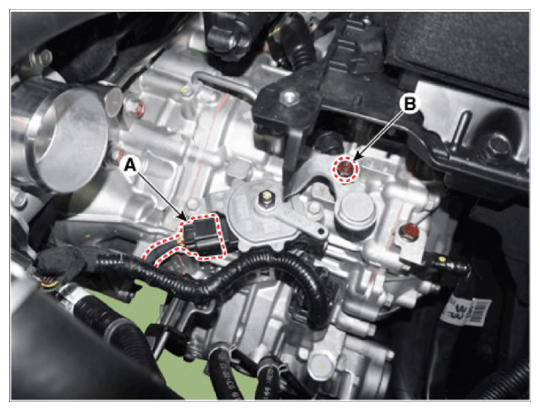

  3. Disconnect the position switch connector (A) and then loosening the shift cable mounting nut (B).
    G14694838Courtesy of HYUNDAI MOTOR AMERICA

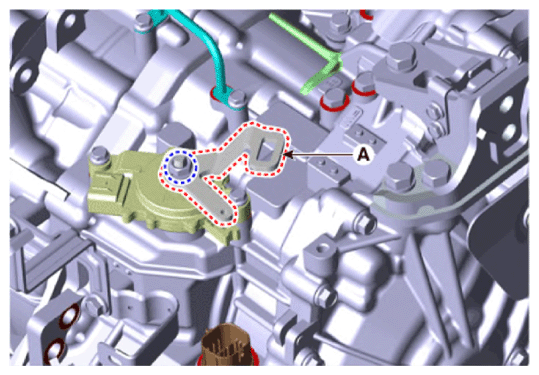

  4. Remove the manual control lever (A) and the washer after removing a nut.
    G14694839Courtesy of HYUNDAI MOTOR AMERICA

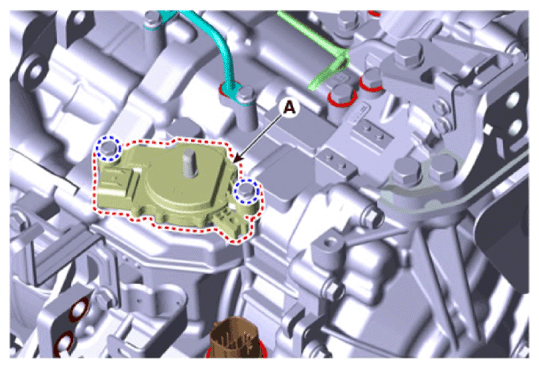

  5. Remove the position switch (A) after removing the bolts.
    G14694840Courtesy of HYUNDAI MOTOR AMERICA
