Components Location

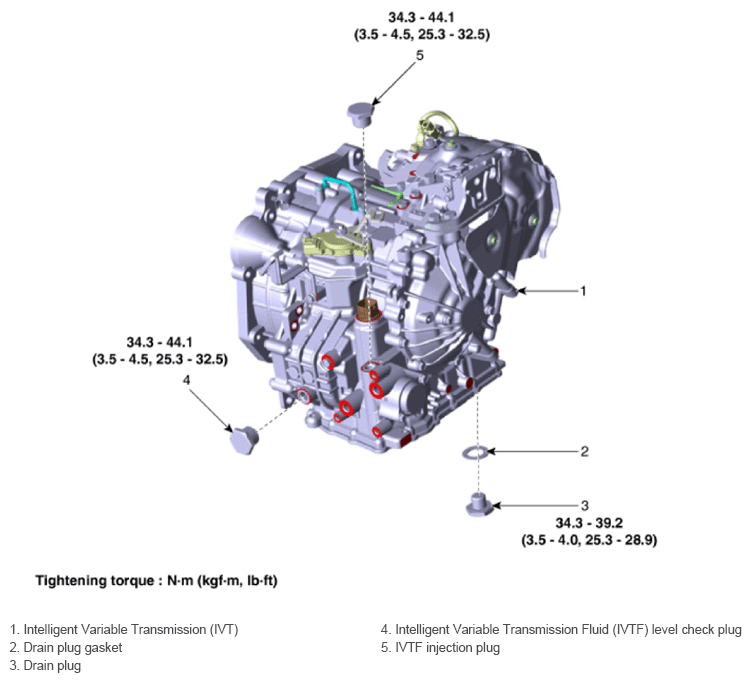

Fig 1: Fluid Components Location With Torque Specification
Courtesy of HYUNDAI MOTOR AMERICA
