Engine Control System Diagnosis (6 Of 6)
>>
DTC P2610-00: ECM/PCM Internal Engine Off Timer Performance
>>
Troubleshooting
>>
Diagnostic Flowchart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

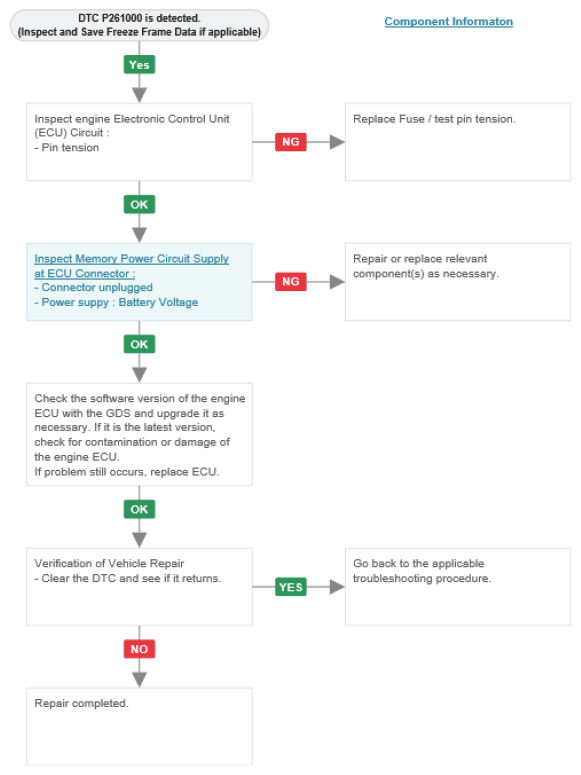

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
