Repair Procedures: Removal

  1. Turn the ignition switch OFF and disconnect the battery negative (-) cable.

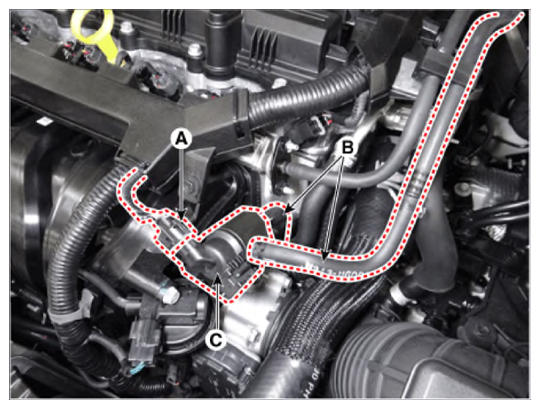

  2. Disconnect the purge control solenoid valve connector (A).
  3. Disconnect the vapor hoses (B).
  4. Remove the purge control solenoid valve (C).
G14694490Courtesy of HYUNDAI MOTOR AMERICA
