Component Location: Rps

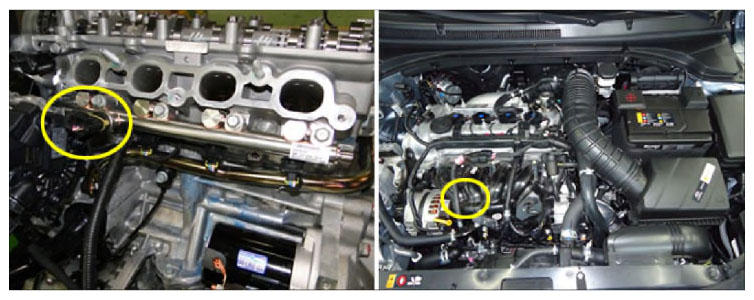

G13056298Courtesy of KIA MOTORS AMERICA, INC.

Fuel rail pressure sensor is mounted to fuel rail and it senses fuel rail pressure.

GDI ECM operates fuel pressure control valve with the signal from fuel rail pressure sensor to control optimized RPM and rail pressure.
